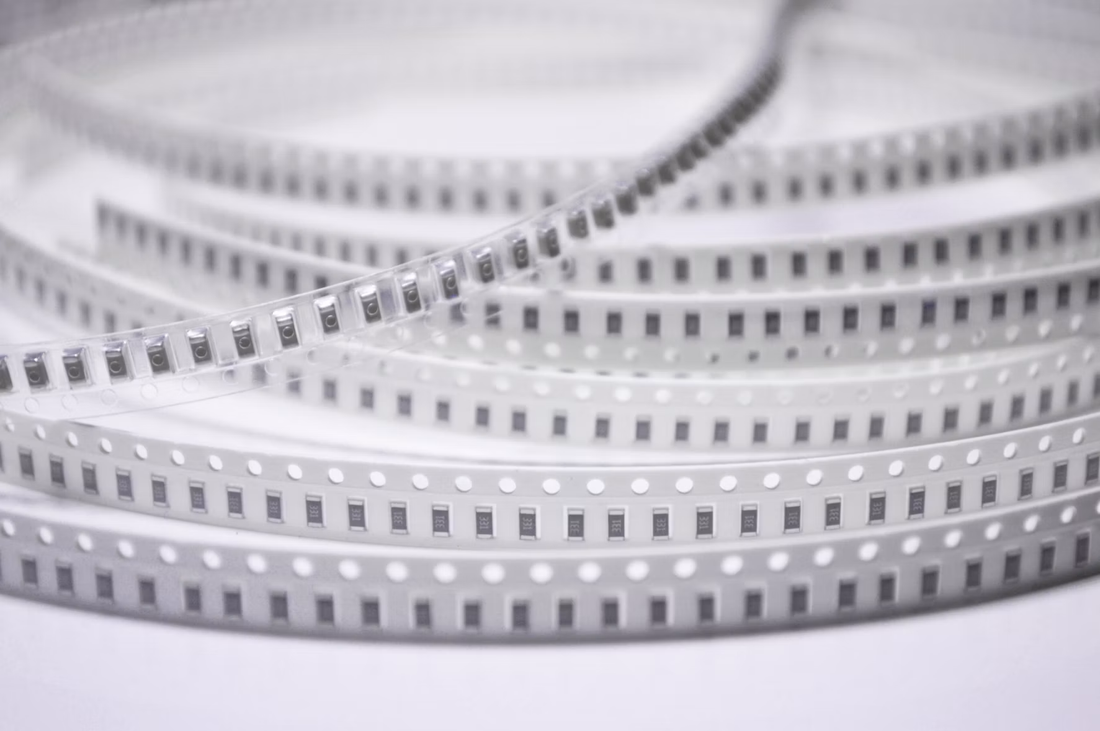

SMT chip components on carrier tape ready for pick-and-place feeder loading

SMT Feeder Procurement Guide: Maximizing ROI on Pre-Owned and Compatible Feeders Under High-Mix Production

1. OEM New vs. Pre-Owned vs. Compatible Feeders: The True ROI Breakdown

When expanding an SMT production line or setting up a new product changeover matrix, tape feeders represent a massive percentage of your overall capital expenditure (CAPEX). Navigating the secondary hardware market requires balancing upfront costs against long-term placement reliability.
Here is how the three primary feeder tiers stack up for modern EMS factories:
  • OEM Brand New Feeders: While offering flawless precision straight out of the box, they carry an immense brand premium. For mid-sized contract manufacturers, tying up significant capital in high-tier OEM new components drastically extends the line's payback period.
  • Original Pre-Owned/Refurbished Feeders: Sourced from decommissioned high-end electronic assembly lines, premium used tape feeders from tier-one brands provide the exact mechanical tolerances and communication protocols as new versions, but at a 40% to 60% budget reduction.
  • High-Precision Compatible New Feeders: Engineered using identical metallurgy and reverse-engineered tracking chips, compatible smart electric feeders provide the same durability as original parts for high-volume passive assembly, making them an excellent choice for optimizing operational overhead.

2. The 4 Mechanical Audits Every SMT Procurement Lead Must Enforce

Never source feeders blindly based on exterior cosmetic paint condition. Before finalizing any cross-border hardware transaction, mandate your supplier to provide technical telemetry on these four critical wear points:

A. Indexing Motor Accuracy & Geared Backlash

On intelligent electric feeders (such as Yamaha YSM/YS or Panasonic NPM systems), the advancement motor must index to precise sub-micron thresholds. Manual inspection should verify that the internal gears haven't developed backlash. Any deviation here causes the tape pocket to overshoot or undershoot the pickup location, spikes the component attrition rate, and triggers continuous machine alarms.

B. Cover Tape Peeling & Winding Torque Consistency

The peeling shutter mechanism and the take-up reel assembly must exert a constant, fluid tension. If the take-up winding spring suffers from tension decay, the peeled cover tape will slack and snag inside the exit chute. If it clamps too tightly, it lifts the carrier tape vertically, causing lightweight micro-components like 0201s to shift or flip over inside their pockets.

C. Signal Interface Pins (Pogo Pins) Electrical Integrity

Smart electric feeders rely on consistent serial data communication with the placement software via an interface block. Audit the gold-plated pogo pins at the rear or bottom of the feeder structure. Corroded, bent, or oil-soaked interface arrays generate intermittent data jitter, causing the pick-and-place gantry to drop connection with that specific slot mid-cycle.

D. Frame Co-Planarity & Clamping Alignment

Heavy operational handling often causes subtle, invisible warpage in a feeder's rigid steel tailpiece or clamping lock. If the feeder frame lacks co-planarity, it will sit crooked when slid into the machine's feeder carriage cart. This slight angular tilt disrupts the vacuum nozzle's Z-axis landing angle, leading to systematic component pickup errors.

3. SMT Platforms Feeder Ecosystem Cheat-Sheet

  • Yamaha Platform (YS / YSM Series): Exceptionally engineered for investment protection. Yamaha's electric intelligent feeders maintain wide forward and backward cross-generational compatibility. Sourcing pre-owned Yamaha electric hardware is a highly secure investment due to its excellent retention of mechanical accuracy and strong resale liquidity.
  • Fuji Platform (NXT I / II / III): Known for its strict modularity. Fuji NXT tape feeders feature tight physical interface boundaries. When purchasing pre-owned NXT units, always verify the exact module generation and frame width calibration to avoid slot integration issues.
  • Panasonic Platform (CM / NPM Series): Relies on high-frequency communication. Panasonic's smart electronic feeders use an active communication interface. Sourcing original pre-owned or certified refurbished Panasonic units is highly recommended to protect your chip shooter's maximum rated UPH (Units Per Hour).

4. Factory-Direct Feeder Stocks Ready for Instant Dispatch

Minimizing factory downtime requires an agile partner who keeps real physical stock on the shelf. We maintain one of the largest independent technical inventories of verified original pre-owned and high-precision compatible SMT tape feeders globally:
Every feeder leaves our facility only after passing a live validation audit on our in-house feeder calibration jigs, guaranteeing 100% field readiness the day it arrives on your shop floor.
