Model
|
SM481
|
|
|
||
|
Alignment
|
Flying Vision, Stage vision(Optional)
|
|
|
||
|
Number of Spindles
|
10 Spindles x 1 Gantry
|
|
|
||
|
Placement speed
|
39.000 CPH(Optimum)
|
|
|
||
|
Placement Accuracy
|
Chip/QFP
|
|
|
||
|
Component Range
|
Fly vision
|
FOV24
|
Chip 0402~16mm lC, Connector(Lead Pitch 0.4mm),BGA, CSP(Ball Pitch0.4mm)
|
||
|
|
|
FOV35
|
16mm lC,Connector(Lead Pitch 0.3mm),BGA, CSP(Ball Pitch 0.4mm)
|
||
|
|
Stage vision
|
|
32mm lC, Connector(Lead Pitch 0.4mm),BGA, CSP(Ball Pitch 0.5mm)
|
||
|
|
|
FOV45
|
32mm lC,Connector(Lead Pitch 0.4mm),BGA, CSP(Ball Pitch 0.5mm)
|
||
|
|
|
|
42mm lC,Connector(Lead Pitch 0.5mm),BGA,CSP(Ball Pitch 1.0mm)
|
||
|
Board Dimension(mm)
|
Minimum
|
|
50(L)x 40(W)
|
||
|
|
Maximum
|
|
4600(L)x400(W),510(L)x460(W)(0ption).610(L)x510(W)(0ption) 740(L)x460(w)(option
|
||
|
PCB Thickness
|
|
|
0.38 ~4.2 mm
|
||
|
Feeder Capacity(Based on 8mm)
|
|
|
120ea/112ea (Docking Cart)
|
||
|
Power
|
|
|
AC20012081220124013801415V(50160Hz.3Phase) Max.4.7 KVA
|
||
|
Air Consumption
|
|
|
0.5~0.7MPa(5~7kgf/cm2)
|
||
|
Mass
|
|
|
Approx.1655 kg
|
||
|
External Dimension(mm)
|
|
|
1,650(L)x 1,680(D)x 1,530(H)
|
||
|
Weight (KG)
|
1500
|
|
Showroom Location
|
Egypt, United States
|
|
Video outgoing-inspection
|
Provided
|
|
Machinery Test Report
|
Provided
|
|
Marketing Type
|
New Product 2020
|
|
Warranty of core components
|
1 Year
|
|
Core Components
|
PLC
|
|
Place of Origin
|
South Korea
|
|
Brand Name
|
SAMSUNG
|
|
Model Number
|
SM481
|
|
Warranty
|
1 Year
|
|
Product name
|

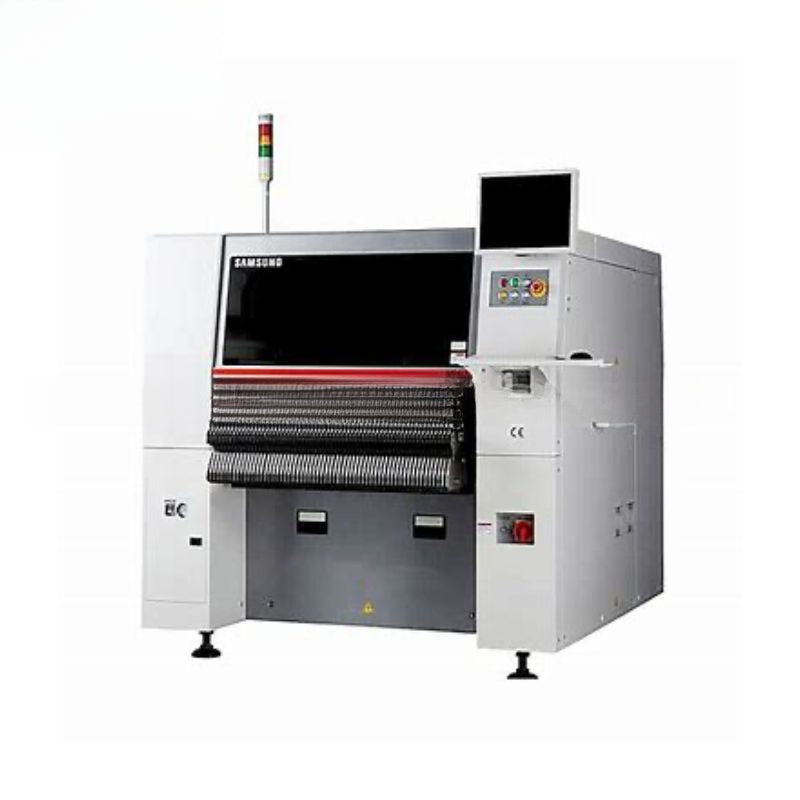

SAMSUNG SM481 pick and place machine
|
|
Model number
|
SM481
|
|
Quality
|
Top
|
|
package
|
wooden case
|
|
Condition
|
new
|
|
Type
|
SMT machine related products
|
|
Brand
|
samsung
|
|
Delivery
|
ups,dhl,fedex,as your order
|
|
Application
|
for smt line
|
|
other model
|
sm471 sm482 sm320
|
