Product Description

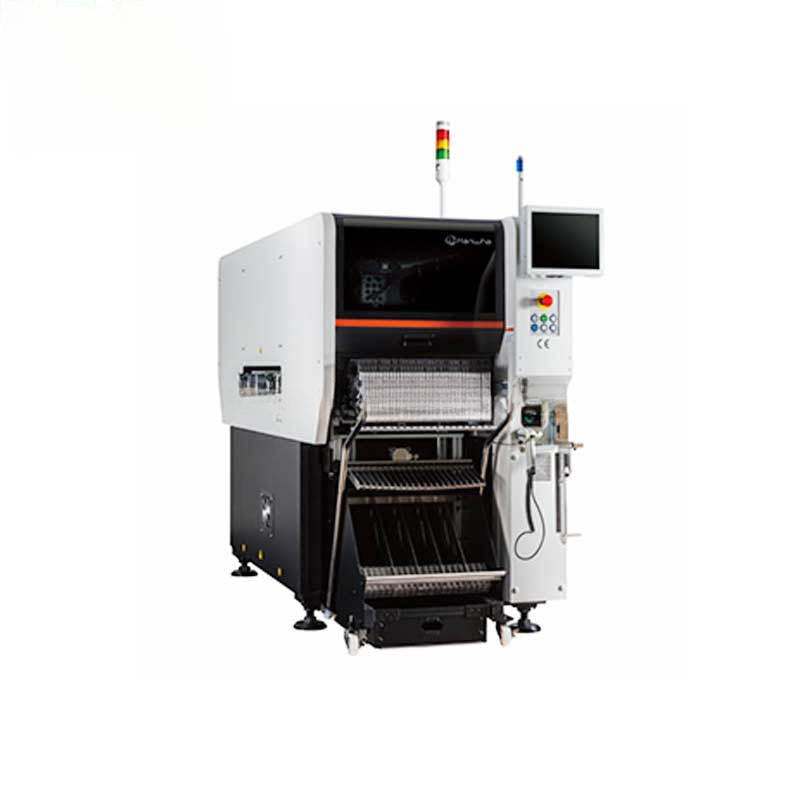

SMT SAMSUNG HANWHA HM520 HS CHIP MOUNTER MACHINE FOR SMT PCB Assembly Line LED
The HM520 series mos are a state-of-the-art high-speed modular with extreme flexibility.
· Actual productivity is highest among machines of the same class
· Optimized to high quality production
· Unmanned, non-stop and zero defect using the Smart Factory S/W Solution
Specifications
Alignment :Fix Camera
Number of Spindles: 20 spindles x 2 Gantry (Rotary Type)
Placement Speed: 80,000 CPH
Placement Accuracy: ±25 μm @ Cpk ≥ 1.0 (Chip)
Component Range: 0201 ~□ 6 mm
High Speed
20 Spindle Head (Rotary Type)
Recognizes 20 spindles quickly at a with the fix camera by designing the head to be and light.
High Reliability
Prevents Non-insertion by the Side View Camera
Checks for the existence of a nozzle and the posture of a picked component during production, and inspects the state before and
after the component placement to prevent non-placement of the component.
Flexible Production
Family Job Change
Minimizes the mo changing by arranging the feeders and nozzles in common when producing family mos.
Easy Operation
LED Rank / Random
Possible to register components different by LED rank and arrange placement points at random by LED or.
The HM520 series mos are a state-of-the-art high-speed modular with extreme flexibility.
· Actual productivity is highest among machines of the same class
· Optimized to high quality production
· Unmanned, non-stop and zero defect using the Smart Factory S/W Solution
Specifications
Alignment :Fix Camera
Number of Spindles: 20 spindles x 2 Gantry (Rotary Type)
Placement Speed: 80,000 CPH
Placement Accuracy: ±25 μm @ Cpk ≥ 1.0 (Chip)
Component Range: 0201 ~□ 6 mm
High Speed
20 Spindle Head (Rotary Type)
Recognizes 20 spindles quickly at a with the fix camera by designing the head to be and light.
High Reliability
Prevents Non-insertion by the Side View Camera
Checks for the existence of a nozzle and the posture of a picked component during production, and inspects the state before and
after the component placement to prevent non-placement of the component.
Flexible Production
Family Job Change
Minimizes the mo changing by arranging the feeders and nozzles in common when producing family mos.
Easy Operation
LED Rank / Random
Possible to register components different by LED rank and arrange placement points at random by LED or.
Specification
|
Weight (KG)
|
1600
|
|
Showroom Location
|
United States, Russia
|
|
Video outgoing-inspection
|
Provided
|
|
Machinery Test Report
|
Provided
|
|
Marketing Type
|
New Product
|
|
Warranty of core components
|
1 Year
|
|
Core Components
|
Hanwha HM520 HS
|
|
Place of Origin
|
South Korea
|
|
Brand Name
|
samsung hanwha
|
|
Model Number
|
HM520 HS
|
|
Warranty
|
1 Year
|
|
Product name
|
SAMSUNG Hanwha HM520 HS Pick And Place Machine
|
|
model
|
HM520 HS
|
|
Application
|
for smt line
|
|
Type
|
smt pick and place machine
|
|
Condition
|
new
|
|
Quality
|
hight quality
|
|
Placement Accuracy
|
±25 μm @ Cpk ≥ 1.0 (Chip)
|
|
Component Range
|
0201 ~□ 6 mm
|
|
Placement Speed
|
80,000 CPH
|
|
Feeder position
|
120 pieces
|
Packing & Delivery
1.wooden case 2.As your order
