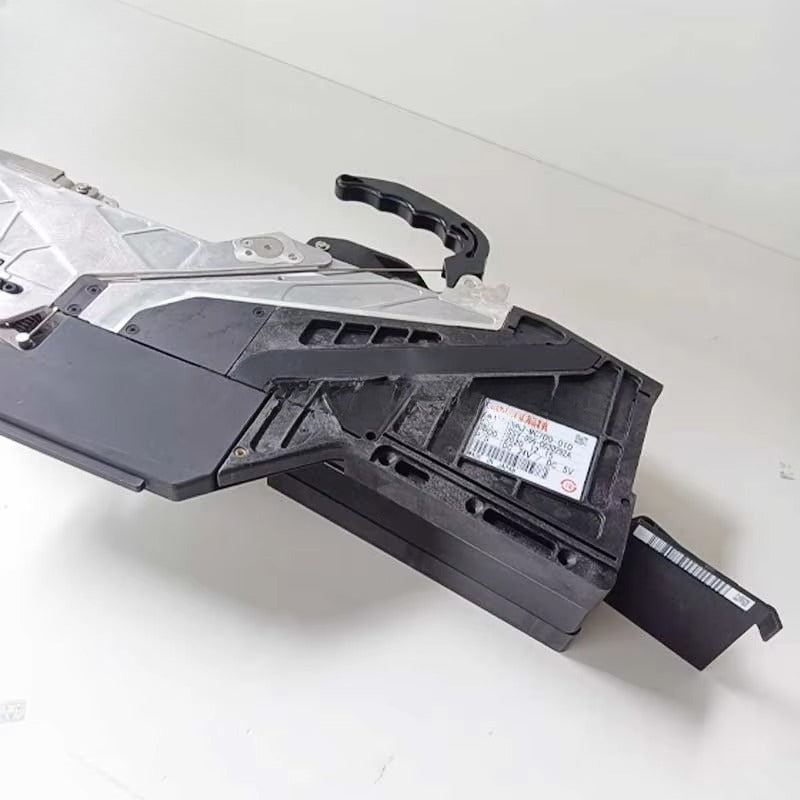

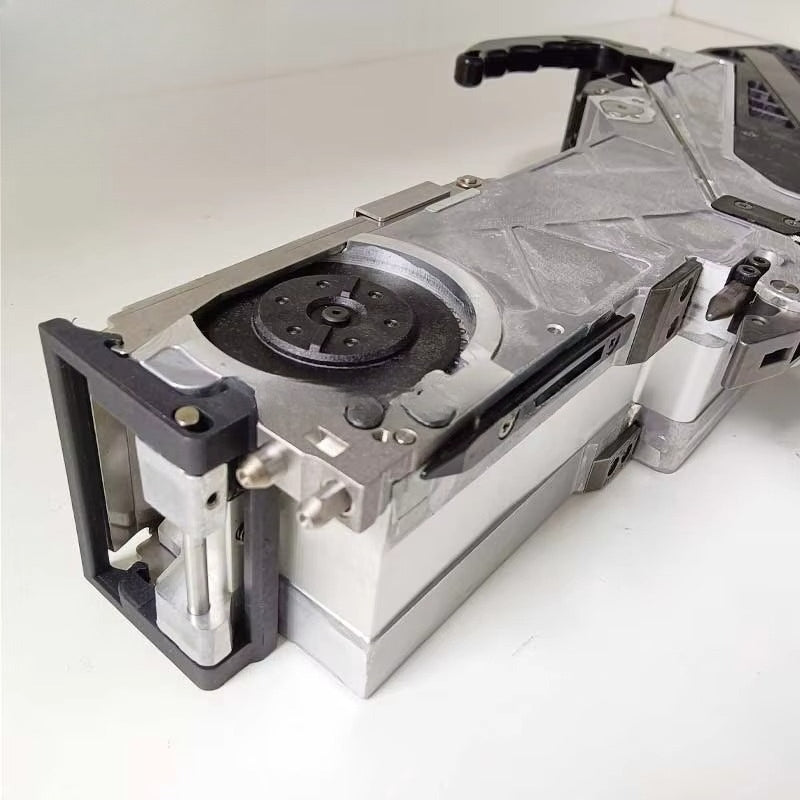

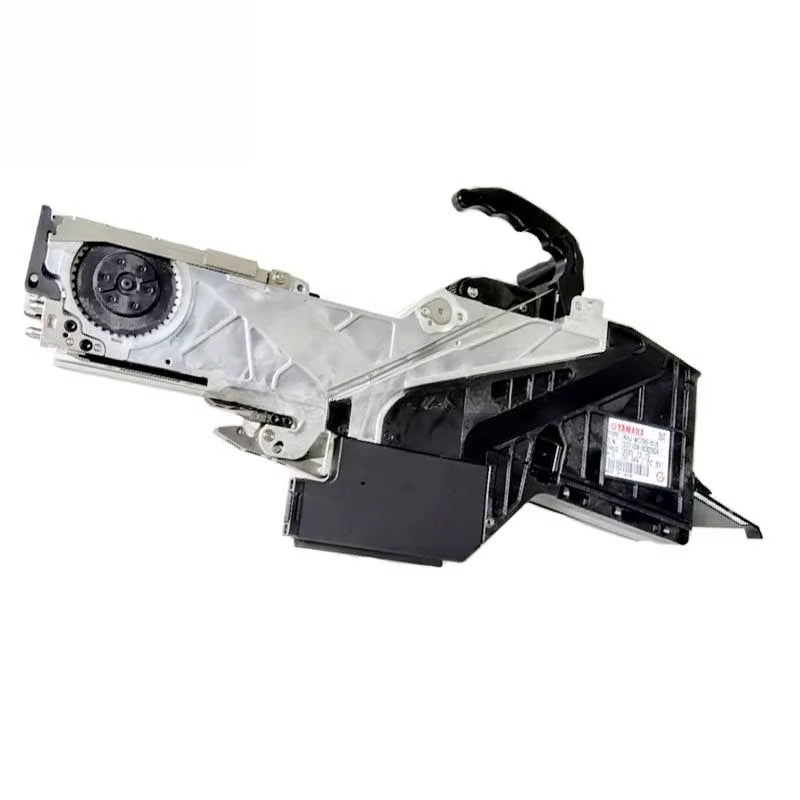

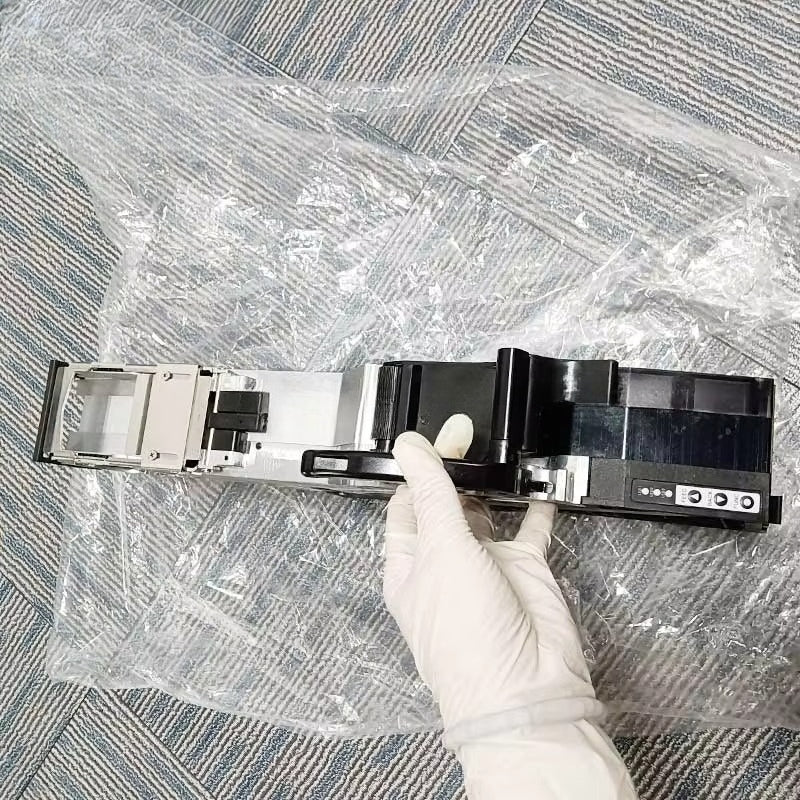

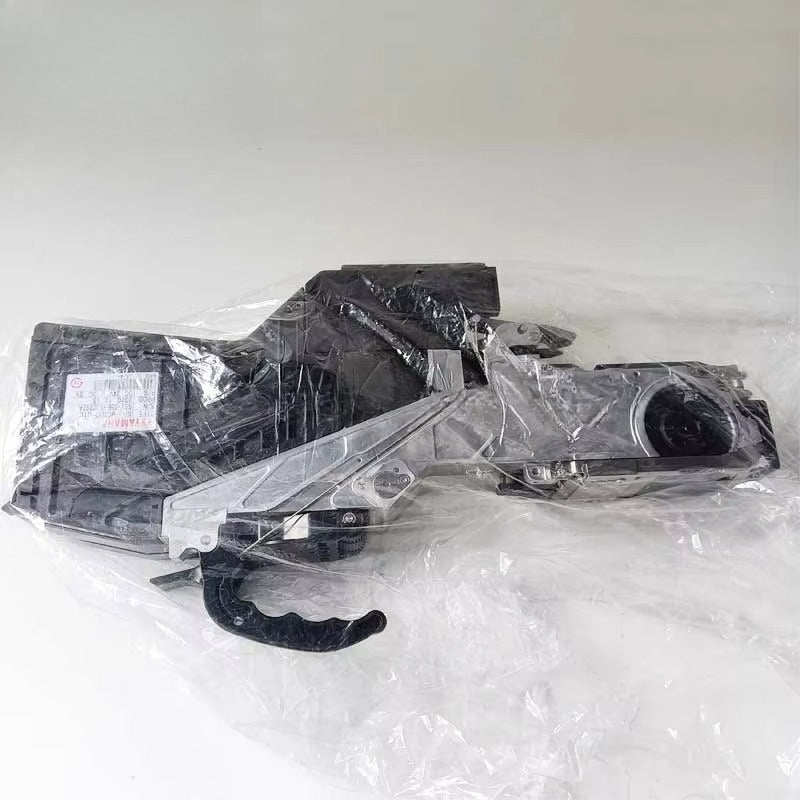

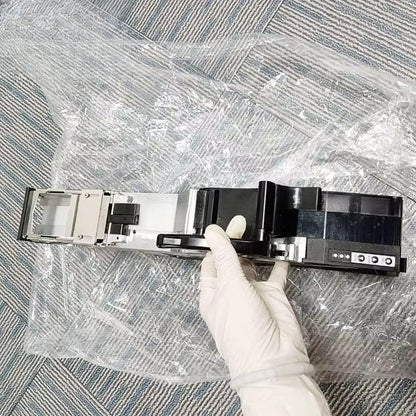

Yamaha KKW3-M3234-00X CL 56mm SMT Feeder
Contact us for price and product confirmation. Send your part number, machine model and required quantity so we can check the match.
- Product
- SMT Feeder
- Brand reference
- Reference confirmation required
- Condition & availability
- Confirm in quotation
- Lead time & shipping
- Quoted by quantity and destination
- Warranty & inspection
- Confirm before ordering
Price on request
Include the required quantity, machine model and delivery country.
Product Details
B2B RFQ & Procurement Inquiries
Due to fluctuating market inventory and global component demands, prices and lead times vary. Please submit your exact part numbers and quantities to receive an official quote.
Direct Inquiries: Email vickey@buysmt.com | WhatsApp: +86 18079109874
Yamaha KKW3-M3234-00X CL 56mm SMT Feeder Overview
The Yamaha KKW3-M3234-00X is an authentic CL series 56mm tape feeder engineered for feeding large embossed tape components on Yamaha surface-mount placement systems. Designed for heavy-duty tape transport and wider pocket pitch indexing, it ensures smooth cover tape peel-back and stable pick-point presentation for complex integrated circuits and odd-form electronic packages.
Compatible Equipment
- Yamaha YV Series (YV100, YV100X, YV100II, YV88X)
- Yamaha YG Series (YG12, YG100, YG200)
- Yamaha YS Series (YS12, YS24, YS100)
Technical Specifications Reference
| Item | Specification |
|---|---|
| Brand | Yamaha |
| Part Number | KKW3-M3234-00X |
| Series | CL Series |
| Category | Pneumatic Feeder |
| Tape Width | 56mm embossed plastic carrier tape |
| Drive Mechanism | Mechanical / Pneumatic cylinder-assisted ratchet indexing |
| Condition | Condition to be confirmed upon inquiry (Original New / Tested Refurbished) |
| Quality Testing | 100% mechanical stroke, ratchet teeth check, and tape guide alignment tested |
| Minimum Order Quantity | 1 Piece |
Buyer & Procurement Notice
Listed pricing and inventory status on this catalog page are unverified placeholders. Actual unit cost, shipping arrangements, and lead times are confirmed via formal quotation based on required feeder condition, batch quantity, and destination country.
Procurement & Technical FAQ
- Q1: Which Yamaha mounters support the KKW3-M3234-00X CL 56mm feeder?
- A: It is compatible with Yamaha YV, YG, and YS series placement machines equipped with feeder carriage banks supporting 56mm wide feeder positions.
- Q2: What component packages are suitable for this 56mm feeder?
- A: It accommodates 56mm embossed plastic carrier tapes carrying large QFPs, BGA sockets, shielding cans, power modules, and specialized connectors.
- Q3: How are pre-owned or refurbished Yamaha CL feeders tested before dispatch?
- A: Each unit undergoes ultrasonic degreasing, ratchet gear wear checks, spring tension testing, and optical feeding alignment on dedicated feeder calibration jigs.
- Q4: How do I request an official quotation?
- A: Send your target quantity, required condition, and delivery destination to vickey@buysmt.com or submit via our online Request a Quote portal.
Need help confirming the part?
Send the existing part label, machine model and photos. Ask us to check the required configuration before you order.
