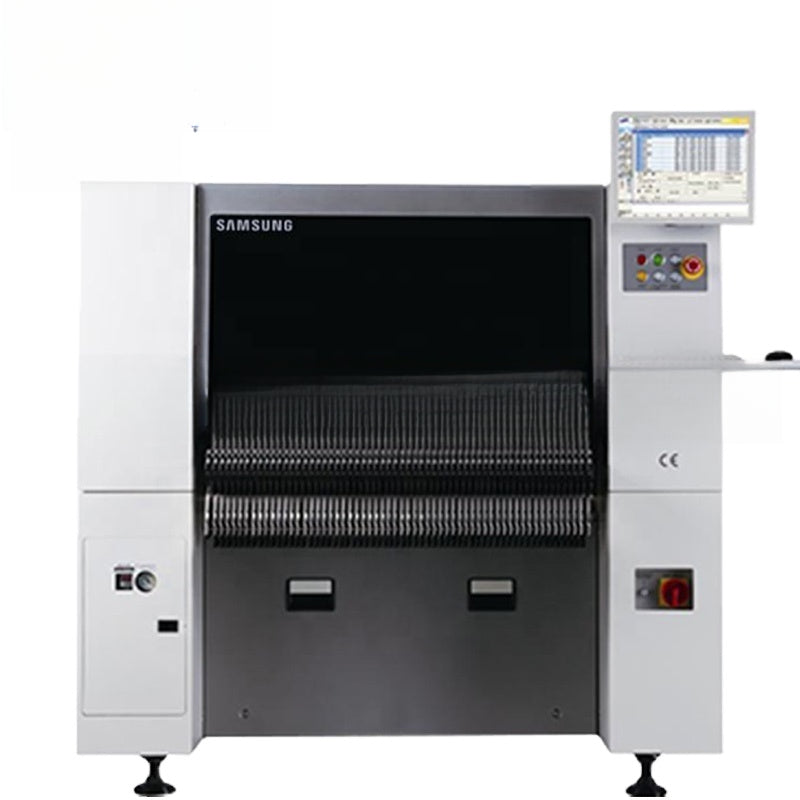

SMT HANWHA SAMSUNG PICK AND PLACE MACHINE SM482 SM481 SM471 SM411
Name:Hanwha pick and place machine
Brand: SAMSUNG-Hanwha
Model:SM482/SM481/SM471/SM411
Specification:SMT pick and place machine
Condition: brand new and brand used
Quality: top quality
Stock:large
Payment:L/C T/T D/P Western Union Paypal Money Gram And Others
Shipment:In 5 days
Warranty: 1 year
Delivery:fedex,ups,dhl,as required
Package:carton box with foam protect
|
Specifications
|
SAMSUNG-HANWHA SMT pick and place machine
|
|
|
||
|
Model
|
SM471
|
SM481
|
SM482Plus
|
||
|
Alignment
|
Flying Vision
|
Flying Vision+stage vision
|
Flying Vision+stage vision
|
||
|
Spindles
|
10 Spindles x 2 Gantry
|
10 Spindles × 1 Gantry
|
6 Spindles × 1 Gantry
|
||
|
Placement Speed
|
75,000CPH(Optimum)
|
38,000CPH(Optimum)
|
27,000CPH(Optimum)
|
||
|
Placement Accuracy
|
±50um@+3 (Based on the Standard Chips)
|
±40μm@μ±3σ
|
±40μm@μ±3σ
|
||
|
Applicable Parts
|
Chip 0402 ~ 14mm(H 12mm) IC, Connector(Lead Pitch 0.4mm) BGA, CSP(Ball Pitch 0.4mm)
|
0402 (01005 inch)
~□42mm (H15mm) |
0603 (0201 inch) ~
□55mm (H15mm) 0402 (01005 inch) (Option), ~ L75mm Connector |
||
|
Board Dimension(mm)
|
50(L) x 40(W)~510(L) x 460(W)610(L) x 460(W)(Option)
|
460(L) x 400(W) (Standard)
Max.1,500(L) x 460(W) (Option) |
460(L) x 400(W) (Standard)
Max.1,200(L) x 510(W) (Option) |
||
|
Feeder Capacity
|
120ea / 112ea(Docking Cart) (Based on 8mm)
|
120ea / 112ea (Docking Cart)
|
120ea / 112ea (Docking Cart)
|
||
|
Air Consumption
|
0.5 ~ 0.7MPa(5 ~ 7kgf/cm2)
|
|
|
||
|
Dimension(L.D.H)
|
1,650 x 1,690 x 1,485
|
1650×1680×1530
|
1650×1680×1458
|
||
|
Mass(Kg)
|
Approx.1820
|
Approx.1655
|
Approx.1600
|
||
