SMT Feeder Jamming? 5-Step Deep Troubleshooting Guide for Process Engineers

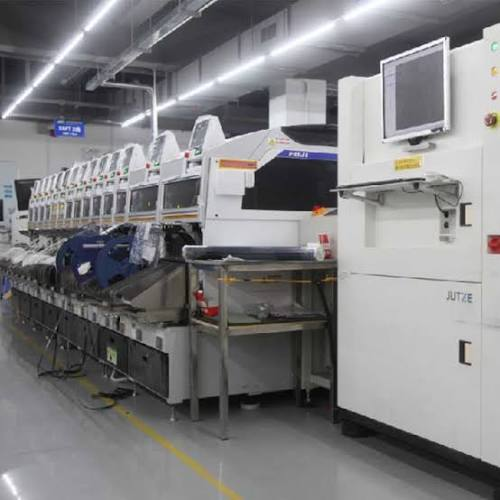

In surface mount technology (SMT) manufacturing, Overall Equipment Effectiveness (OEE) is heavily dictated by pickup error rates and unplanned downtime. Among all assembly line hiccups, feeder jamming is arguably the most frequent roadblock for shop-floor engineers.

When a component feeder triggers constant alarms, causes tape-peeling issues, or drives up the component attrition/reject rate, simply swapping the entire tape feeder is often a temporary band-aid rather than a root-cause solution.

This technical guide outlines a structured, 5-step hardware-level troubleshooting workflow to isolate and eliminate SMT tape feeder jamming.

🛠️ Step 1: Audit Pitch Calibration and Software Synchronization

When pneumatic or electric intelligent feeders jam frequently after a product changeover (e.g., transitioning carrier tapes from 0402 to 0603 micro-components), your primary suspect should be pitch mismatch.

Hardware Layer: Inspect the stroke mechanical stops on pneumatic feeders or check the motor pulse configurations on electric intelligent feeders. If the physical indexing pitch is misconfigured (e.g., 2mm incorrectly set to 4mm), the carrier tape will over-feed or under-feed, causing components to wedge directly beneath the cover-plate.

Software Layer: Cross-verify the tape feeder definition matrix inside your pick-and-place machine's placement software. Ensure that the pocket-to-pocket pitch defined in the component library matches the physical feeder configuration exactly.

⚙️ Step 2: Quantify Sprocket Tooth Wear and Backlash

The index sprocket wheel is the primary drive mechanism responsible for advancing the carrier tape via its perforation sprocket holes.

The Wear Profile: Under continuous high-speed cycling, the sharp profiles of the sprocket teeth suffer from metal fatigue, gradually becoming dull, rounded, or structurally shaved.

The Consequence: A worn sprocket tooth fails to engage fully with the carrier tape's indexing holes. This creates a slippage or asymmetrical tape tracking, causing the carrier tape to buckle, wrinkle, and jam inside the guide channel.

Engineering Action: Use a pocket magnifier or toolmaker's microscope during preventive maintenance (PM) cycles to check tooth integrity. If you observe crown rounding or tip erosion, replace the sprocket wheel immediately. Browse our Feeder Accessories for compatible sprocket wheels.

📐 Step 3: Analyze Cover Tape Tension and Guide-Plate Warpage

The peeling and winding tension applied to the cover tape (top film) directly dictates the stability of component exposure prior to the pickup point.

Over-Tensioning: If the take-up motor or rewind spring exerts excessive torque, the cover tape will lift the guide-plate (shutter mechanism). This vertical displacement alters the feeder's critical z-height geometry, occasionally allowing components to escape or flip over before reaching the pickup nozzle.

Under-Tensioning: If the film is peeled too loosely, the unreeled cover tape will slack, bunching up at the exit window or wrapping around the intake pulleys, leading to consecutive feeding lockups.

Mechanical Inspection: Check the flat-spring shutter or guide-plate for structural warpage caused by repeated nozzle impact or heavy clamping. Even a microscopic vertical clearance deviation allows paper or plastic pocket tapes to fold or accordion inside the track.

✁ Step 4: Inspect Tape Cutter Efficiency and Solenoid Latency

For modern pick-and-place systems utilizing automated trailing-tape cutters, the waste disposal sub-system is a hidden catalyst for component feeding failures.

Dull Blade Profiles: A dull cutter shear blade fails to execute a clean guillotine cut on paper or embossed plastic tapes. Instead, it tears the substrate, leaving jagged burrs and loose fibers that wedge inside the discharge chute, resulting in back-pressure jams.

Pneumatic and Solenoid Latency: If the cutter cylinder air supply is restricted, or the electrical actuation solenoid exhibits millisecond-level signal delays, the cutting stroke will drift out of sync with the high-speed indexing cycle. This timing mismatch causes the advancing tape to collide with a half-open blade.

💨 Step 5: Isolate Nozzle Vacuum Degradation and Tip Attrition

Frequently, a "Feeder Jam" or "Feeding Error" alert on your HMI screen is a secondary symptom triggered by upstream nozzle pickup errors.

Vacuum Reflex Anomalies: If a nozzle tip is partially occluded by solder paste flux residue, or if its ESD-safe ceramic/diamond coating suffers a micro-chip or fracture, the vacuum purge pressure drops. The component may skew, stand on edge (tombstoning), or fail to lift altogether during the pickup phase.

Machine Logic Misinterpretation: When the machine's vision system detects a component orientation anomaly and executes a reject/purge command, the placement software may register consecutive pickup failures as a "Feeder Feeding Error." Ensure you cross-reference your vision system logs with physical feeder telemetry before tearing down the hardware.

📝 Conclusion

Eliminating SMT feeder jamming requires maintaining ultra-precise dimensional clearances and zero-latency mechanical sequencing. Establishing strict PM schedules for critical wear components—specifically drive sprockets, cutter blades, and nozzle tips—will permanently eliminate over 90% of chronic line stoppages.

Ready to replace worn parts? Browse our full range of SMT Feeders, SMT Nozzles, and Feeder Accessories for Yamaha, Fuji, Panasonic, Juki, and Samsung/Hanwha platforms.
