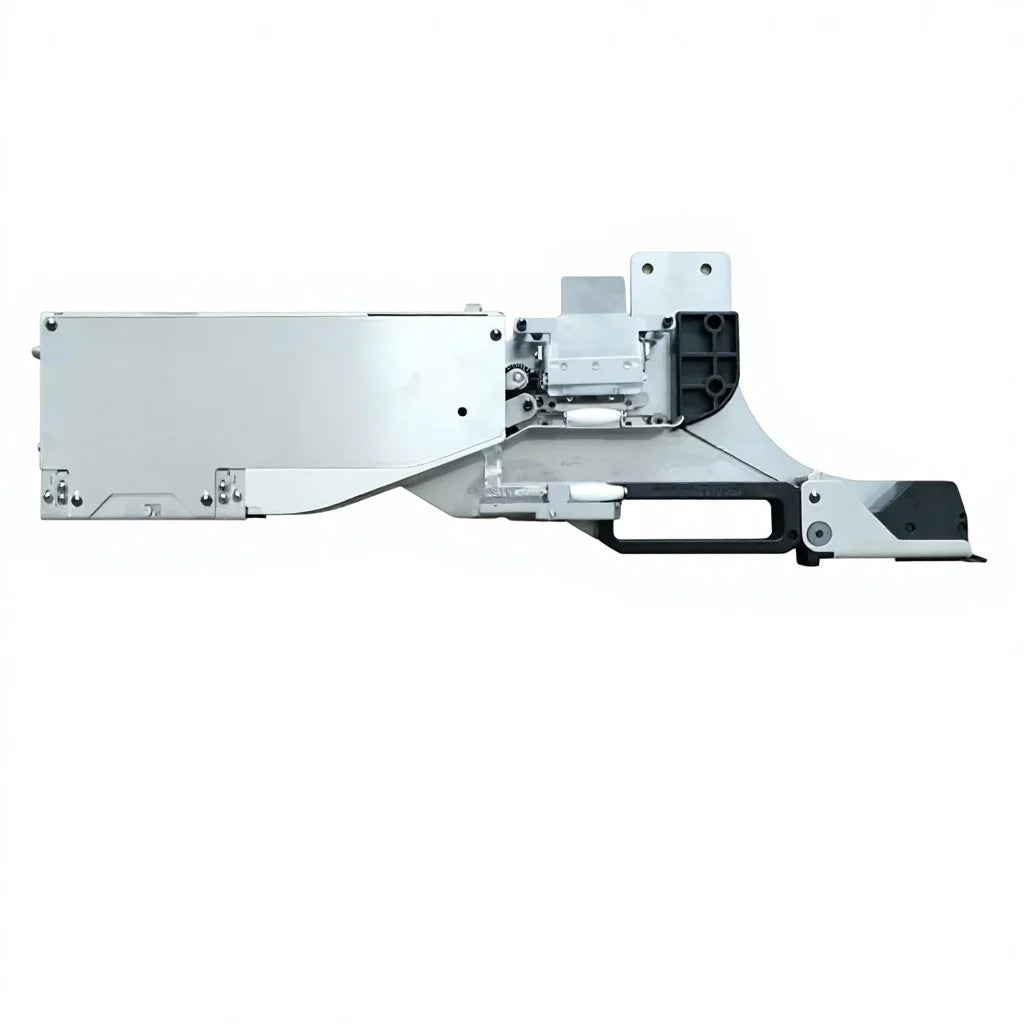

Fuji NXT W32 / W32C / W32F 32mm Electric SMT Feeder

Fuji NXT W32 / W32C / W32F 32mm Electric SMT Feeder Overview

The Fuji NXT W32 / W32C / W32F 32mm Electric Feeder is a wide-format intelligent motorized tape cassette feeder engineered for high-accuracy handling of large surface-mount devices on Fuji NXT, AIMEX, and XPF placement platforms. Designed for 32mm embossed plastic carrier tapes, this electric feeder integrates a digital closed-loop stepper motor, high-torque index gearing, and automated cover tape peeling to guarantee vibration-free component advance for power semiconductors, large inductors, and specialized connectors.

Compatible Equipment

• Fuji NXT Series: NXT I, NXT II, NXT III (M3, M3S, M6, M6S modules)
• Fuji AIMEX Series: AIMEX, AIMEX II, AIMEX IIIC
• Fuji XPF Multi-Function Pick and Place Machines

Technical Specifications Reference

Item	Specification
Brand	Fuji
Series	NXT W Series (Intelligent Cassette Feeder)
Model / Part Numbers	W32 / W32C / W32F
Category	Electric Feeder / Tape Feeder
Applicable Tape Width	32 mm Embossed Plastic Carrier Tape
Drive Mechanism	Integrated digital electric motor drive with smart serial communication interface
Condition	Condition to be confirmed upon inquiry (Original New / Tested Refurbished)
Quality Testing	100% communication bus check, motor pitch indexing calibration, and peeling tension verification
Minimum Order Quantity	1 Piece

Buyer & Procurement Notice

Listed pricing and inventory status on this catalog page are unverified placeholders. Actual unit cost, shipping arrangements, and lead times are confirmed via formal quotation based on required feeder sub-version (W32, W32C, or W32F), condition, batch quantity, and destination country.

Procurement & Technical FAQ

Q1: What component packages are typically fed using this 32mm Fuji electric feeder?

A: The 32mm feeder is ideal for large SMD packages including large-footprint QFPs, BGA packages, aluminum electrolytic capacitors, heavy wirewound power chokes, and board-to-board multi-pin headers packaged in 32mm tape.

Q2: What are the key distinctions between Fuji W32, W32C, and W32F models?

A: These designations indicate production revisions and clamp profile updates. The W32C and W32F variants feature optimized clamp geometry and improved tension arms for smoother loading across standard NXT feeder banks.

Q3: How are refurbished Fuji NXT W32 series feeders inspected and tested?

A: Each unit undergoes ultrasonic cleaning, internal gear and spring inspection, electrical communication verification, and automated 500-cycle tape feeding verification on a specialized Fuji test jig.

Q4: How can I request an official quotation?

A: Please send your required sub-version (W32, W32C, or W32F), target quantity, preferred condition, and destination address to vickey@buysmt.com or use our online Request a Quote portal.
