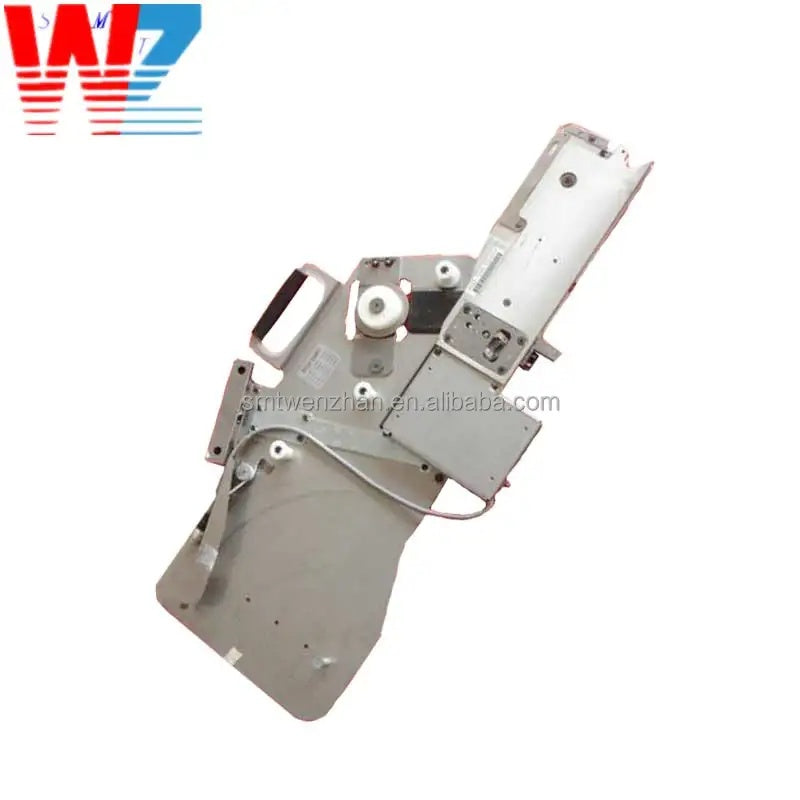

Fuji CP6 CP642 CP643 8mm Pneumatic SMT Feeder for CP6

Fuji CP6 CP642 CP643 8mm Pneumatic SMT Feeder Overview

The Fuji CP6 CP642 CP643 8mm Pneumatic SMT Feeder is a heavy-duty, high-speed pneumatic tape feeder engineered specifically for Fuji CP series high-speed rotary turret chip shooters. Utilizing reliable pneumatic indexing cylinders and precision mechanical ratchet indexing pawls, this feeder ensures rapid tape advancement, stable peeling tension, and exact pocket positioning required by high-speed rotary placement heads operating at ultra-high cycles per hour.

Compatible Equipment & Machine Models

This 8mm pneumatic feeder is designed for Fuji high-speed turret placement systems:

• Fuji CP6 Series: Fuji CP6, CP-642, CP-642E, CP-643, CP-643E chip shooters
• Fuji CP7 & CP8 Series: Fuji CP7, CP-742, CP-743, CP-8, CP-842, CP-843
• Rotary Turret Turntables: Compatible with standard Fuji CP series fixed and mobile feeder carriages
• Offline Calibration Bases: Fits standard Fuji CP mechanical feeder calibration and stroke inspection benches

Key Parameters & Precision Engineering

• Applicable Tape Width & Pitch: 8mm carrier tape width / 2mm and 4mm mechanical pitch ratchet stroke
• Supported Packaging Media: Standard punched paper tape and embossed plastic blister carrier tape
• Pneumatic Air Supply Requirements: 0.45 – 0.55 MPa clean, dry industrial compressed air
• Precision Tolerance: Component pickup position repeatability within ±0.05 mm under high-speed operation
• Durable Construction: High-rigidity steel frame structure with heat-treated tool steel index ratchets and anti-wear guide tracks
• Operational Reliability: Built for round-the-clock mass production environments exceeding 10,000,000 cycles

Assembly Applications & Component Range

The Fuji CP6 / CP642 / CP643 8mm feeder is widely deployed across high-volume electronics assembly lines, including computer motherboards, automotive control modules, power supplies, household appliances, and LED driver boards. It delivers smooth, jam-free feeding for standard 8mm tape components:

• Standard chip resistors and multilayer ceramic capacitors (0402, 0603, 0805, 1206 packages)
• Small outline diodes and transistors (SOT-23, SOD-123, SOD-323)
• Miniature inductors, ferrite beads, and crystal resonators

Quality Standards & Condition Options

We provide verified procurement options tailored to your production maintenance needs:

• Original New: Authentic factory-manufactured Fuji feeder assemblies in sealed packaging.
• Tested Refurbished: Fully overhauled including pneumatic cylinder seal replacement, ratchet pawl inspection, ultrasonic cleaning, and 500-cycle advance stroke testing on a dedicated calibration jig.
• Warranty Coverage: Backed by a 1-month to 3-month operational warranty with outgoing test video inspection.

Related Fuji SMT Feeders & Accessories

Explore complementary feeder models and placement accessories for your Fuji SMT production lines:

• Fuji XP-142E 8x4mm Electric SMT Feeder
• Fuji NXT W08 / W08C 8mm Electric SMT Feeder
• Fuji NXT W12 / W12C 12mm Electric SMT Feeder
• Fuji NXT W16 / W16C / W16F 16mm Electric SMT Feeder
• Fuji NXT W24 / W24C 24mm Electric SMT Feeder

Technical Specifications Reference

Parameter	Specification
Brand	Fuji
Series	CP/XP Series
Model / Machine Fit	CP6, CP642, CP643 (Compatible with CP7, CP8)
Category Tag	Pneumatic Feeder
Applicable Tape Width	8 mm Paper and Embossed Plastic Carrier Tape
Pitch Setting	2 mm / 4 mm Mechanical Ratchet Stroke
Drive Mechanism	Pneumatic cylinder actuation with mechanical ratchet advance pawl
Operating Air Pressure	0.45 – 0.55 MPa
Condition	Condition to be confirmed upon inquiry (Original New / Tested Refurbished)
Quality Testing	100% pneumatic seal pressure test, stroke indexing calibration, and peeling tension check
Minimum Order Quantity	1 Piece

Buyer & Procurement Notice

Listed pricing and stock availability on this catalog entry represent unverified placeholders. Official unit pricing, current batch availability, and express shipping quotes are provided upon submission of your target quantity, required condition, and destination country.
