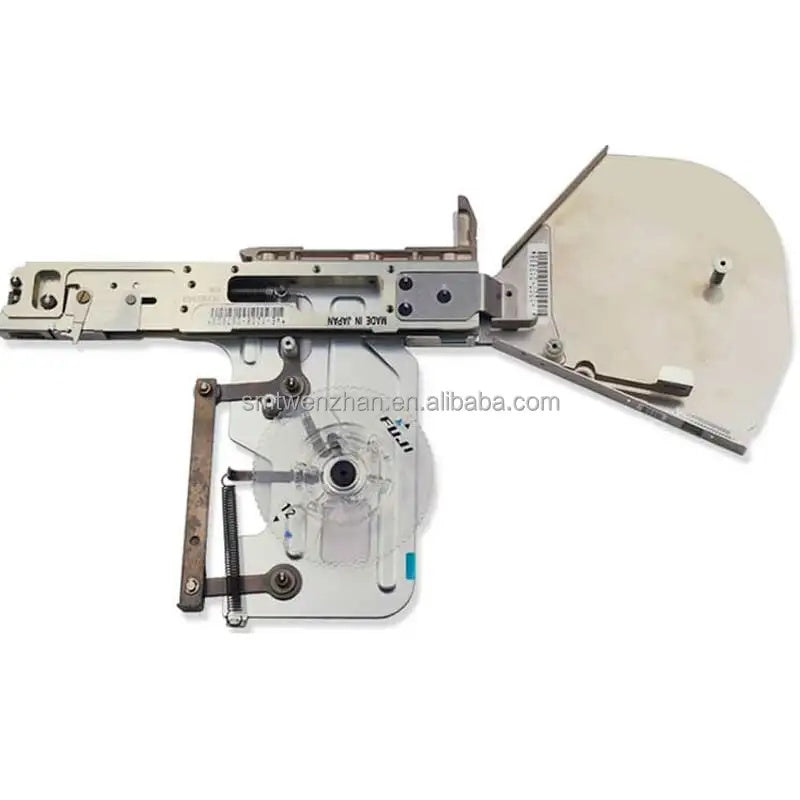

Fuji XP-142E 8x4mm Electric SMT Feeder for XP142 XP242

Fuji XP-142E 8x4mm Electric SMT Feeder Overview

The Fuji XP-142E 8x4mm Electric SMT Feeder is a high-speed motorized tape cassette feeder specifically engineered for precision component indexing on Fuji XP-series high-speed surface-mount placement systems. Powered by an integrated high-torque precision electric motor, the XP-142E feeder eliminates mechanical ratchet vibration, significantly reducing component displacement, upright component tombstoning, and nozzle pickup failures during intensive high-volume electronics assembly.

Compatible Equipment & Machine Models

This electric feeder is fully compatible with the following Fuji surface mount platforms:

• Fuji XP High-Speed Series: XP-141E, XP-142E, XP-143E
• Fuji Multi-Function Series: XP-241E, XP-242E, XP-243E
• Fuji Feeder Bank Base Compatibility: Standard Fuji XP electronic feeder floating carts and stationary feeder bases

Key Parameters & Precision Engineering

• Tape Width & Pitch: 8mm carrier tape width / 4mm indexing pitch (8x4mm standard format)
• Indexing Accuracy: Dynamic stepping accuracy within ±0.03 mm for reliable micro-component pick rates
• Structural Materials: Heavy-duty aircraft-grade aluminum alloy housing with hardened tool steel sprocket gears and anti-wear tape guides
• Drive Mechanism: Autonomous closed-loop digital electric stepping motor with direct gear transmission
• Operational Lifespan: Designed for continuous industrial operation rated in excess of 5,000,000 indexing cycles

Assembly Applications & Component Range

The Fuji XP-142E 8x4mm feeder is ideally suited for high-density SMT manufacturing lines across automotive electronics, industrial IoT controls, consumer electronics, and telecommunications hardware. It reliably feeds a wide spectrum of 8mm taped SMD components, including:

• Passive components: 0402 (1005 metric), 0603 (1608 metric), and 0805 (2012 metric) resistors, capacitors, and inductors
• Discrete semiconductors: SOT-23, SOD-123, SOD-323 diodes, and transistors
• Small-outline ICs and optical sensors packaged in 8mm embossed plastic or punched paper tapes

Quality Standards & Condition Options

We provide multiple procurement grades to suit diverse manufacturing budgets and operational cycles:

• Original New: Factory-fresh authentic Fuji components in original protective packaging.
• Tested Refurbished: Thoroughly disassembled, ultrasonically cleaned, fitted with new wear parts, calibrated, and cycle-tested on factory jigs.
• Warranty Coverage: Backed by a comprehensive 3-month to 1-year operational warranty with outgoing video inspection.

Related Fuji SMT Feeders & Accessories

Explore complementary feeder sizes and placement accessories for your Fuji SMT production lines:

• Fuji XP / XPF Electric SMT Feeder Series
• Fuji NXT W08F 8mm Electric SMT Feeder
• Fuji NXT W12 / W12C 12mm Electric SMT Feeder
• Fuji CP6 / CP7 Mechanical SMT Feeder (8mm - 44mm)

Technical Specifications Reference

Parameter	Specification
Brand	Fuji
Series	CP/XP Series
Part Number / Model	XP-142E (8X4E / 8x4mm)
Category Tag	Electric Feeder
Applicable Tape Width	8 mm Paper and Embossed Plastic Carrier Tape
Feeding Pitch	4 mm
Drive Type	Electric Motorized Drive
Condition	Condition to be confirmed upon inquiry (Original New / Tested Refurbished)
Quality Testing	100% optical sensor check, motor pitch indexing calibration, and peeling tension verification
MOQ	1 Piece

Buyer & Procurement Notice

Listed pricing and inventory availability on this catalog entry serve as reference placeholders. Final unit costs, lead times, and global courier freight are calculated upon submission of your target quantity, required condition, and delivery destination.

Procurement & Technical FAQ

Q1: What are the main advantages of the Fuji XP-142E electric feeder over mechanical feeders?

A: The XP-142E utilizes a motorized drive system that delivers smooth, programmable tape advance. This eliminates mechanical shock, prevents component jumping inside the tape pockets, and significantly reduces pickup error rates on 0402 and 0603 chip components.

Q2: Can this 8x4mm feeder be used on both paper and plastic carrier tapes?

A: Yes, the XP-142E is engineered with an adaptable tape guide channel and adjustable peel tension mechanism that reliably supports both 8mm punched paper tape and 8mm embossed plastic carrier tape.

Q3: How are refurbished Fuji XP-142E feeders tested prior to international dispatch?

A: Each unit undergoes ultrasonic degreasing, mechanical backlash measurement, electrical load diagnostics, and a simulated 500-cycle high-speed advance test on a dedicated calibration jig to verify ±0.03mm indexing precision.

Q4: How can I place an order or request a volume quotation?

A: Send your desired quantities, preferred condition grade, and shipping destination to vickey@buysmt.com or use our convenient online Request a Quote portal.
