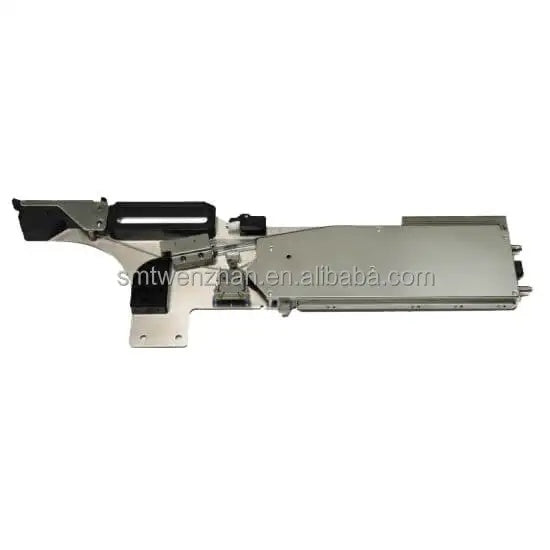

Fuji NXT W12 / W12C 12mm Electric SMT Feeder
SKU: 1601289533220_NXT/XPF 12MM
Contact us for price and product confirmation. Send your part number, machine model and required quantity so we can check the match.
- Product
- SMT Feeder
- Brand reference
- Fuji
- Condition & availability
- Confirm in quotation
- Lead time & shipping
- Quoted by quantity and destination
- Warranty & inspection
- Confirm before ordering
Price on request
Include the required quantity, machine model and delivery country.
Product Details
B2B RFQ & Procurement Inquiries
Due to fluctuating market inventory and global component demands, prices and lead times vary. Please submit your exact part numbers, component tape pitch, and required quantities to receive an official quote.
Direct Inquiries: Email vickey@buysmt.com | WhatsApp: +86 18079109874
Fuji NXT W12 / W12C 12mm Electric SMT Feeder Overview
The Fuji NXT W12 / W12C 12mm Electric Feeder is an intelligent motorized tape cassette feeder engineered for high-precision component delivery on Fuji NXT, AIMEX, and XPF surface mount placement systems. Designed for 12mm embossed plastic and paper carrier tapes, this electric feeder integrates digital closed-loop drive technology, precise tape advancing sprockets, and automated cover tape peeling to ensure smooth, high-speed feeding for SOPs, SOTs, D-Paks, inductors, and medium IC packages.
Compatible Equipment
- Fuji NXT Series: NXT I, NXT II, NXT III (M3, M3S, M6, M6S modules)
- Fuji AIMEX Series: AIMEX, AIMEX II, AIMEX IIIC
- Fuji XPF Multi-Function Pick and Place Machines
Technical Specifications Reference
| Item | Specification |
|---|---|
| Brand | Fuji |
| Series | NXT W Series (Intelligent Cassette Feeder) |
| Model / Part Numbers | W12 / W12C |
| Category | Electric Feeder / Tape Feeder |
| Applicable Tape Width | 12 mm Embossed Plastic and Paper Carrier Tape |
| Drive Mechanism | Integrated digital electric motor drive with smart serial communication interface |
| Condition | Condition to be confirmed upon inquiry (Original New / Tested Refurbished) |
| Quality Testing | 100% communication bus check, motor pitch indexing calibration, and peeling tension verification |
| Minimum Order Quantity | 1 Piece |
Buyer & Procurement Notice
Listed pricing and inventory status on this catalog page are unverified placeholders. Actual unit cost, shipping arrangements, and lead times are confirmed via formal quotation based on required feeder revision (W12 or W12C), condition, batch quantity, and destination country.
Procurement & Technical FAQ
- Q1: What component types are commonly fed using the Fuji NXT W12 feeder?
- A: The 12mm feeder is typically used for medium-sized surface mount components, including power inductors, electrolytic capacitors, diodes, SOP-8/SOP-16 packages, and SOT-223/DPAK semiconductors packaged in 12mm tape.
- Q2: What is the main distinction between W12 and W12C models?
- A: The W12C represents an improved clamp revision with refined latching geometry and enhanced guide plate durability, ensuring seamless interchangeability across NXT and AIMEX machine tables.
- Q3: How are refurbished Fuji NXT W12 feeders tested prior to delivery?
- A: Each feeder undergoes ultrasonic cleaning, internal gear inspection, electronic sensor calibration, bus communication testing, and an automated continuous 500-cycle advance test on a Fuji calibration jig.
- Q4: How can I request an official quotation?
- A: Please send your required model (W12 or W12C), target quantity, preferred condition, and destination address to vickey@buysmt.com or submit an inquiry through our online Request a Quote form.
