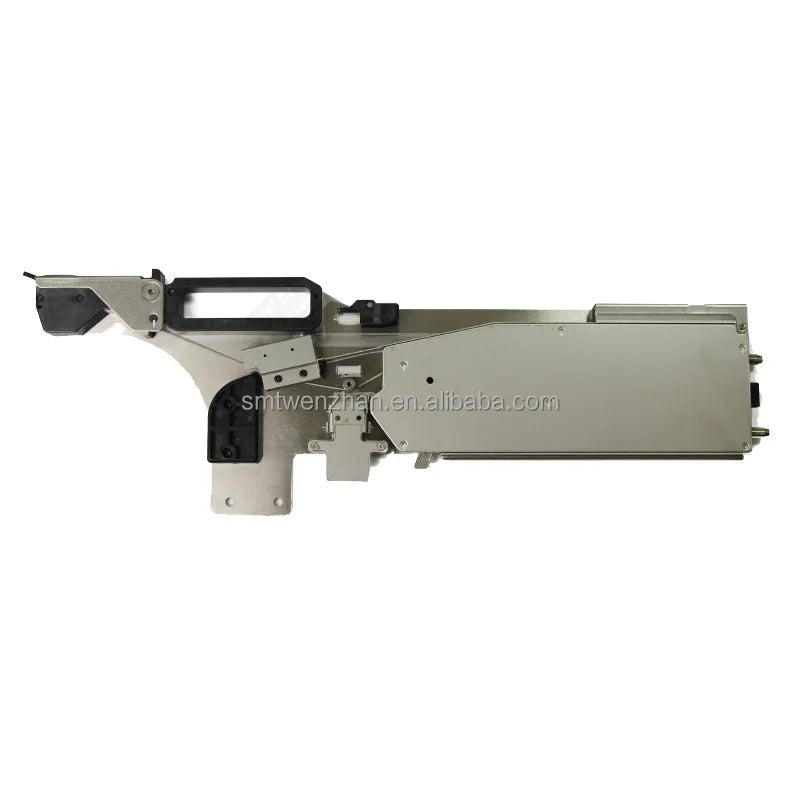

Fuji NXT W56 / W56C / W56F 56mm Electric SMT Feeder

Fuji NXT W56 / W56C / W56F 56mm Electric SMT Feeder Overview

The Fuji NXT W56 / W56C / W56F 56mm Electric Feeder is an extra-wide format intelligent motorized tape cassette feeder engineered for high-accuracy handling of large surface-mount devices on Fuji NXT, AIMEX, and XPF placement platforms. Designed for 56mm embossed plastic carrier tapes, this electric feeder integrates a digital closed-loop stepper motor, heavy-duty pitch indexing gears, and automated cover tape peeling to guarantee vibration-free component advance for large ICs, shielding cans, power modules, and specialized connectors.

Compatible Equipment

• Fuji NXT Series: NXT I, NXT II, NXT III (M3, M3S, M6, M6S modules)
• Fuji AIMEX Series: AIMEX, AIMEX II, AIMEX IIIC
• Fuji XPF Multi-Function Pick and Place Machines

Technical Specifications Reference

Item	Specification
Brand	Fuji
Series	NXT W Series (Intelligent Cassette Feeder)
Model / Part Numbers	W56 / W56C / W56F
Category	Electric Feeder / Tape Feeder
Applicable Tape Width	56 mm Embossed Plastic Carrier Tape
Drive Mechanism	Integrated digital electric motor drive with smart serial communication interface
Condition	Condition to be confirmed upon inquiry (Original New / Tested Refurbished)
Quality Testing	100% communication bus check, motor pitch indexing calibration, and peeling tension verification
Minimum Order Quantity	1 Piece

Buyer & Procurement Notice

Listed pricing and inventory status on this catalog page are unverified placeholders. Actual unit cost, shipping arrangements, and lead times are confirmed via formal quotation based on required feeder sub-version (W56, W56C, or W56F), condition, batch quantity, and destination country.

Procurement & Technical FAQ

Q1: What component packages are typically fed using this 56mm Fuji electric feeder?

A: The 56mm feeder is designed for extra-large SMD packages including high-pin-count QFP/BGA devices, large power inductors, multi-pin automotive connectors, RF shield frames, and transformers packaged in 56mm carrier tape.

Q2: What are the key distinctions between Fuji W56, W56C, and W56F models?

A: These designations indicate production revisions and clamp profile updates. The W56C and W56F variants feature optimized clamp geometry and improved tension arms for smoother loading across standard NXT feeder banks.

Q3: How are refurbished Fuji NXT W56 series feeders inspected and tested?

A: Each unit undergoes ultrasonic cleaning, internal gear and spring inspection, electrical communication verification, and automated 500-cycle tape feeding verification on a specialized Fuji test jig.

Q4: How can I request an official quotation?

A: Please send your required sub-version (W56, W56C, or W56F), target quantity, preferred condition, and destination address to vickey@buysmt.com or use our online Request a Quote portal.
