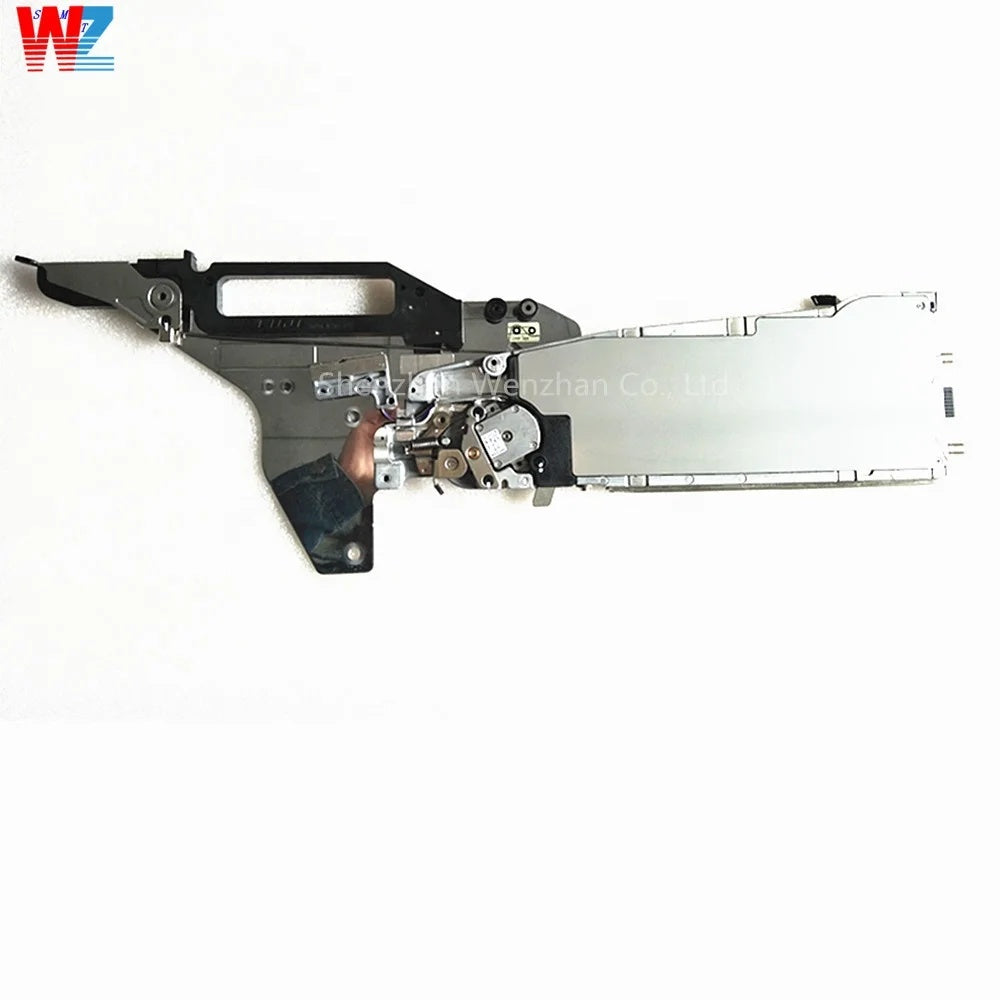

Fuji NXT II W08c 8mm Electric SMT Feeder for M3 II M6 II

Fuji NXT II W08c 8mm Electric SMT Feeder Overview

The Fuji NXT II W08c 8mm Electric SMT Feeder is a high-speed intelligent motorized tape cassette feeder specifically engineered for 8mm embossed plastic and pressed paper carrier tapes. Designed for second-generation Fuji NXT II modular placement platforms and multi-function XPF systems, the W08c cassette delivers micro-step indexing precision, continuous high-speed film peeling, and zero-vibration component advancement for ultra-small passives and IC packages.

Compatible Equipment & Machine Models

This 8mm electronic feeder is fully verified for use across Fuji surface mount production equipment:

• Fuji NXT II Series: NXT II M3 II, M3 IIc, M6 II, M6 IIc placement modules
• Fuji NXT I & NXT III Series: Backward and forward compatible with standard NXT modular bases
• Fuji Multi-Function Series: Fuji XPF, AIMEX, AIMEX II, and AIMEX III systems
• Calibration & Setup Units: Compatible with Fuji intelligent feeder calibration jigs, setup carts, and barcode teaching stations

Key Parameters & Precision Engineering

• Applicable Tape Width: 8mm carrier tape (compatible with standard 8x2mm and 8x4mm component spacing)
• Supported Packaging Media: Paper tape and embossed plastic blister tape
• Indexing Repeatability: High-precision electronic stepper feed with position repeatability within ±0.02 mm
• Smart Control Interface: Digital membrane control panel with PWR/ERR indicator LEDs, forward/backward manual jog buttons, and pitch selection switches
• Operational Reliability: Heavy-duty industrial mechanism rated for over 8,000,000 continuous pick-and-place cycles

Assembly Applications & Component Range

The Fuji NXT II W08c 8mm feeder provides maximum placement efficiency in high-density surface mount assembly lines, including smartphones, automotive sensors, IoT modules, and medical electronics. It is optimized for handling miniature surface mount devices:

• Ultra-miniature chip passives: 01005, 0201, 0402, 0603, and 0805 resistors and ceramic capacitors
• Miniature semiconductors: SOT-23, SOD-123, SC-70, and DFN packages
• Precision crystal oscillators, LED dies, and miniature surface mount inductors

Quality Standards & Condition Options

To support your factory maintenance schedules and production ramp-ups, we offer flexible procurement grades:

• Original New: Authentic factory-sealed Fuji cassette feeder units in original factory packing.
• Tested Refurbished: Fully serviced units subjected to ultrasonic decontamination, optical sensor recalibration, drive gear clearance adjustment, and 500-cycle continuous feeder bench verification.
• Warranty Coverage: Each feeder includes a 3-month to 1-year functional warranty and complete pre-shipment performance video documentation.

Related Fuji SMT Feeders & Accessories

Explore matching feeder sizes and placement accessories for your Fuji production lines:

• Fuji NXT W08 / W08C 8mm Electric SMT Feeder
• Fuji NXT W08F 8mm Electric SMT Feeder
• Fuji NXT W12 / W12C 12mm Electric SMT Feeder
• Fuji NXT W16 / W16C 16mm Electric SMT Feeder
• Fuji NXT W24 / W24C 24mm Electric SMT Feeder

Technical Specifications Reference

Parameter	Specification
Brand	Fuji
Series	NXT W Series (Intelligent Cassette Feeder)
Model / Part Numbers	NXT II W08c / W08C
Category Tag	Electric Feeder
Applicable Tape Width	8 mm Embossed Plastic and Pressed Paper Carrier Tape
Feeding Pitch	2 mm / 4 mm Electronic Selection
Drive Mechanism	Closed-loop electronic stepper motor with integrated digital communication bus
Condition	Condition to be confirmed upon inquiry (Original New / Tested Refurbished)
Quality Testing	100% optical sensor check, electronic jog testing, and continuous calibration advance verification
Minimum Order Quantity	1 Piece

Buyer & Procurement Notice

Listed pricing and stock availability on this catalog entry represent unverified placeholders. Official unit pricing, current batch availability, and express shipping quotes are provided upon submission of your target quantity, required condition, and destination country.

Procurement & Technical FAQ

Q1: What are the primary advantages of the Fuji NXT II W08c feeder?

A: The W08c features refined peel tension geometry and enhanced electronic control logic, ensuring stable component feeding even at maximum pick-and-place placement speeds for 0201 and 01005 components.

Q2: Can the W08c feeder be used on first-generation NXT I machines?

A: Yes, Fuji NXT series feeders feature backward and forward base compatibility across NXT I, NXT II, and NXT III modular platforms.

Q3: How are refurbished W08c feeders inspected prior to shipment?

A: Refurbished units undergo complete ultrasonic cleaning, sprocket teeth inspection, tension blade calibration, sensor diagnostics, and a 500-cycle advance test on a dedicated feeder test station.

Q4: How can I check stock availability and obtain a commercial quotation?

A: Please submit your required quantity, target condition grade, and shipping destination to vickey@buysmt.com or use our online Request a Quote form.
