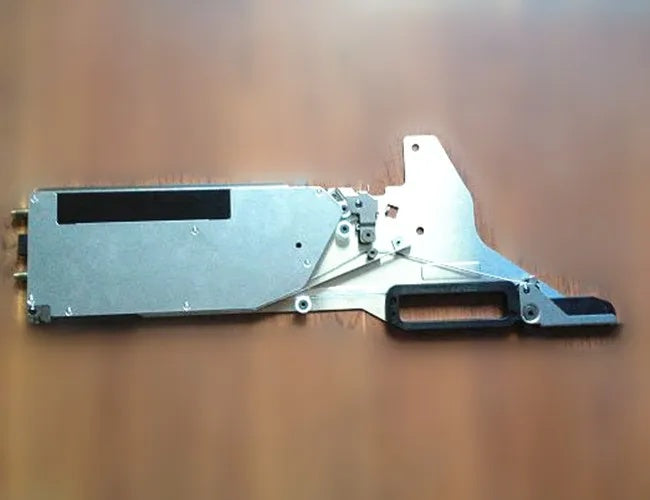

Fuji NXT W08 / W08C 8mm Electric SMT Feeder for M3 M6 XPF

Fuji NXT W08 / W08C 8mm Electric SMT Feeder Overview

The Fuji NXT W08 / W08C 8mm Electric SMT Feeder is an industrial-grade motorized tape cassette feeder designed for consistent, high-speed micro-component feeding on Fuji NXT modular and multi-function pick and place machines. Featuring precision stepper motor propulsion and an integrated electronic communication bus, the W08 and W08C series eliminate mechanical pitch indexing wear, significantly reducing component pickup errors, tape jamming, and line stoppage.

Compatible Equipment & Machine Models

This 8mm electronic feeder is fully compatible with modular Fuji placement systems:

• Fuji NXT Series: NXT I, NXT II, NXT III (M3, M3S, M6, M6S modules)
• Fuji AIMEX Series: AIMEX, AIMEX II, AIMEX IIc, AIMEX III, AIMEX IIIC
• Fuji Multi-Function Series: Fuji XPF Pick and Place Machines
• Feeder Base Compatibility: Standard Fuji intelligent feeder bases, mobile feeder carts, and offline setup stations

Key Parameters & Precision Engineering

• Applicable Tape Width & Pitch: 8mm carrier tape width / 2mm and 4mm software-selectable feed pitch
• Supported Tape Packaging: Punched paper tape, pressed paper tape, and embossed plastic carrier tape
• Step Repeatability: High-precision indexing accuracy within ±0.03 mm for stable vision centering
• Chassis Construction: Aircraft-grade aluminum alloy body with wear-resistant tool steel sprocket wheels and ceramic tape guides
• Operational Reliability: Heavy-duty industrial design rated for over 5,000,000 continuous pick-and-place cycles

Assembly Applications & Component Range

The Fuji NXT W08 / W08C 8mm feeder is the foundation for high-volume SMT electronics assembly across consumer electronics, industrial controllers, automotive telematics, LED drivers, and telecommunications modules. It reliably feeds all standard 8mm tape-packaged components, including:

• Micro-passives: 0201 (0603 metric), 0402 (1005 metric), 0603 (1608 metric), and 0805 (2012 metric) resistors, capacitors, and inductors
• Discrete semiconductors: SOT-23, SOD-123, SOD-323, and miniature diode arrays
• Small integrated circuits: DFN, QFN, and micro-CSP packages on 8mm carrier tape

Quality Standards & Condition Options

We provide verified procurement options based on your budget and production standards:

• Original New: 100% factory-original Fuji cassette feeder units in original packaging.
• Tested Refurbished: Fully reconditioned with ultrasonic cleaning, mechanical gear lash calibration, optical sensor diagnostic testing, and automated 500-cycle advance test runs on dedicated test jigs.
• Warranty Coverage: Backed by a 1-month to 3-month operational warranty with outgoing test video verification.

Related Fuji SMT Feeders & Accessories

Explore complementary feeder sizes and placement accessories for your Fuji SMT production lines:

• Fuji NXT W12 / W12C 12mm Electric SMT Feeder
• Fuji NXT W16 / W16C / W16F 16mm Electric SMT Feeder
• Fuji NXT W24 / W24C 24mm Electric SMT Feeder
• Fuji NXT W56 / W56C / W56F 56mm Electric SMT Feeder
• Fuji XP-142E 8x4mm Electric SMT Feeder

Technical Specifications Reference

Parameter	Specification
Brand	Fuji
Series	NXT W Series (Intelligent Cassette Feeder)
Model / Part Numbers	W08 / W08C (Compatible with W08F)
Category Tag	Electric Feeder
Applicable Tape Width	8 mm Paper and Embossed Plastic Carrier Tape
Feeding Pitch	2 mm / 4 mm Selectable
Drive Mechanism	Integrated digital electric motor drive with smart serial communication interface
Condition	Condition to be confirmed upon inquiry (Original New / Tested Refurbished)
Quality Testing	100% communication bus check, motor pitch indexing calibration, and peeling tension verification
Minimum Order Quantity	1 Piece

Buyer & Procurement Notice

Listed pricing and stock availability on this catalog entry represent unverified placeholders. Official unit pricing, current batch availability, and express shipping quotes are provided upon submission of your target quantity, required condition, and destination country.

Procurement & Technical FAQ

Q1: What is the difference between Fuji NXT W08, W08C, and W08F feeders?

A: All three models share the standard 8mm tape interface and NXT slot form factor. The W08C and W08F incorporate refined tape-peeling blade angles and reinforced latch components for smoother indexing at maximum line speeds.

Q2: Can the W08 / W08C feeder handle both embossed plastic and punched paper tape?

A: Yes, the feeder is engineered to feed standard 8mm embossed plastic blister tape as well as punched and pressed paper carrier tapes without jamming.

Q3: How are refurbished Fuji NXT W08 feeders tested prior to shipment?

A: Every refurbished unit undergoes ultrasonic cleaning, optical sensor testing, gear backlash calibration, and a continuous 500-cycle advance test on a dedicated calibration fixture.

Q4: How do I obtain an official quotation and confirm lead times?

A: Please send your required part numbers, target quantities, and destination port to vickey@buysmt.com or submit via our Request a Quote form.
