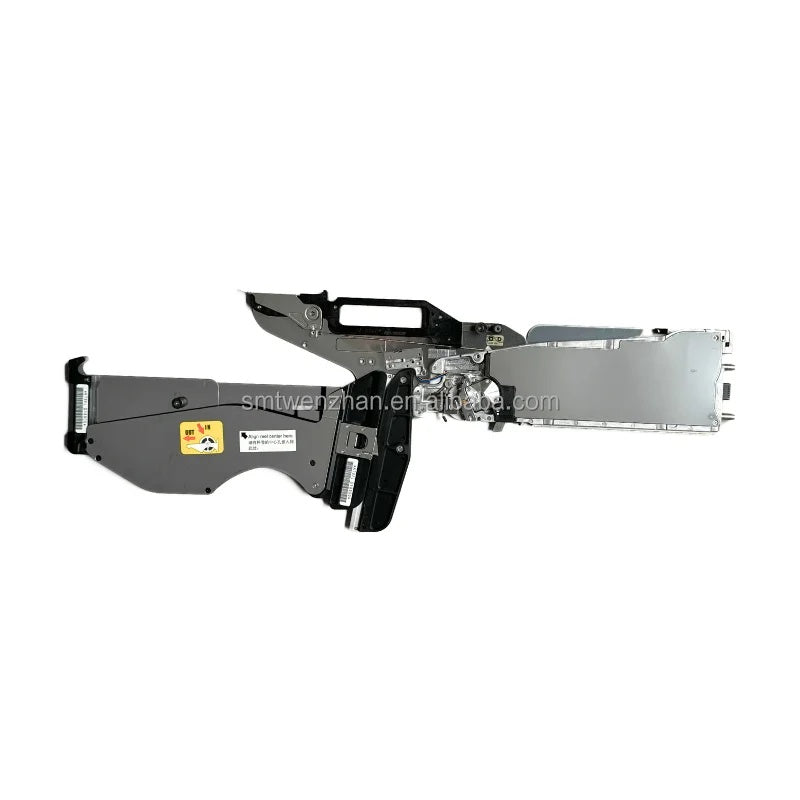

Fuji NXT W08F 8mm Electric SMT Feeder for NXT M3 M6 XPF

Fuji NXT W08F 8mm Electric SMT Feeder Overview

The Fuji NXT W08F 8mm Electric SMT Feeder is a high-speed intelligent motorized tape cassette feeder engineered for high-precision micro-component placement on Fuji NXT, AIMEX, and XPF surface mount platforms. Featuring advanced digital closed-loop stepper motor drive technology and intelligent serial bus communications, the W08F cassette feeder guarantees ultra-smooth, vibration-free indexing, preventing component jumping, tombstoning, and nozzle pick errors on ultra-miniature passive parts.

Compatible Equipment & Machine Models

This 8mm electric cassette feeder is fully compatible with modular Fuji placement systems:

• Fuji NXT Series: NXT I, NXT II, NXT III (M3, M3S, M6, M6S modules)
• Fuji AIMEX Series: AIMEX, AIMEX II, AIMEX IIc, AIMEX III, AIMEX IIIC
• Fuji Multi-Function Series: Fuji XPF Pick and Place Machines
• Feeder Base Compatibility: Standard Fuji NXT intelligent feeder base banks and offline setup stations

Key Parameters & Precision Engineering

• Applicable Tape Width & Pitch: 8mm carrier tape width / 2mm and 4mm multi-pitch indexing capability
• Supported Tape Types: Punched paper tape, pressed paper tape, and embossed plastic carrier tape
• Indexing Repeatability: High-precision step accuracy within ±0.03 mm for reliable machine vision alignment
• Structural Materials: Heavy-duty aircraft aluminum chassis with hardened alloy tool steel drive sprockets and anti-wear tape guides
• Operational Lifespan: Industrial design rating exceeding 5,000,000 continuous pick-and-place indexing cycles

Assembly Applications & Component Range

The Fuji NXT W08F 8mm feeder is the workhorse of high-density SMT electronics manufacturing lines across mobile devices, automotive electronics, IoT sensors, medical instruments, and telecommunications hardware. It delivers high-speed, jam-free feeding for standard 8mm taped parts, including:

• Micro-passives: 0201 (0603 metric), 0402 (1005 metric), 0603 (1608 metric), and 0805 (2012 metric) chip resistors, capacitors, and inductors
• Miniature semiconductors: SOT-23, SOD-323, SOD-523, and DFN packages
• Precision optical sensors and quartz crystal resonators packaged in 8mm carrier tape

Quality Standards & Condition Options

We supply verified procurement options tailored to your production demands:

• Original New: Authentic factory-original Fuji feeder units in original factory packaging.
• Tested Refurbished: Complete ultrasonic cleaning, internal gear lash adjustment, optical sensor diagnostic testing, and automated 500-cycle advance testing on factory calibration benches.
• Warranty Coverage: Backed by a 3-month to 1-year operational warranty with outgoing test video inspection.

Related Fuji SMT Feeders & Accessories

Explore complementary feeder sizes and placement accessories for your Fuji SMT production lines:

• Fuji NXT W12 / W12C 12mm Electric SMT Feeder
• Fuji NXT W16 / W16C / W16F 16mm Electric SMT Feeder
• Fuji NXT W24 / W24C 24mm Electric SMT Feeder
• Fuji NXT W56 / W56C / W56F 56mm Electric SMT Feeder
• Fuji XP-142E 8x4mm Electric SMT Feeder

Technical Specifications Reference

Parameter	Specification
Brand	Fuji
Series	NXT W Series (Intelligent Cassette Feeder)
Model / Part Numbers	W08F (Compatible with W08 / W08C)
Category Tag	Electric Feeder
Applicable Tape Width	8 mm Paper and Embossed Plastic Carrier Tape
Feeding Pitch	2 mm / 4 mm Selectable
Drive Mechanism	Integrated digital electric motor drive with smart serial communication interface
Condition	Condition to be confirmed upon inquiry (Original New / Tested Refurbished)
Quality Testing	100% communication bus check, motor pitch indexing calibration, and peeling tension verification
Minimum Order Quantity	1 Piece

Buyer & Procurement Notice

Listed pricing and stock availability on this catalog entry represent unverified placeholders. Official unit pricing, current batch availability, and express shipping quotes are provided upon submission of your target quantity, required condition, and destination country.

Procurement & Technical FAQ

Q1: What are the key improvements of the W08F feeder compared to earlier W08 and W08C models?

A: The W08F features an optimized locking latch mechanism, enhanced peel-blade geometry, and upgraded internal sensor durability, minimizing peel friction and component flutter on 0201 micro-chips at maximum NXT placement speeds.

Q2: Can the W08F feeder feed both 2mm and 4mm component pitches?

A: Yes, pitch selection is fully electronic and automatically coordinated by the Fuji machine software or manual setup station without requiring mechanical gear replacements.

Q3: How are refurbished Fuji NXT W08F feeders tested prior to delivery?

A: Each unit undergoes ultrasonic cleaning, optical sensor inspection, electronic serial bus diagnostic checks, and a continuous 500-cycle tape advance test on a dedicated calibration jig.

Q4: How can I request an official quotation?

A: Please send your required quantities, preferred condition grade, and delivery destination to vickey@buysmt.com or use our online Request a Quote portal.
