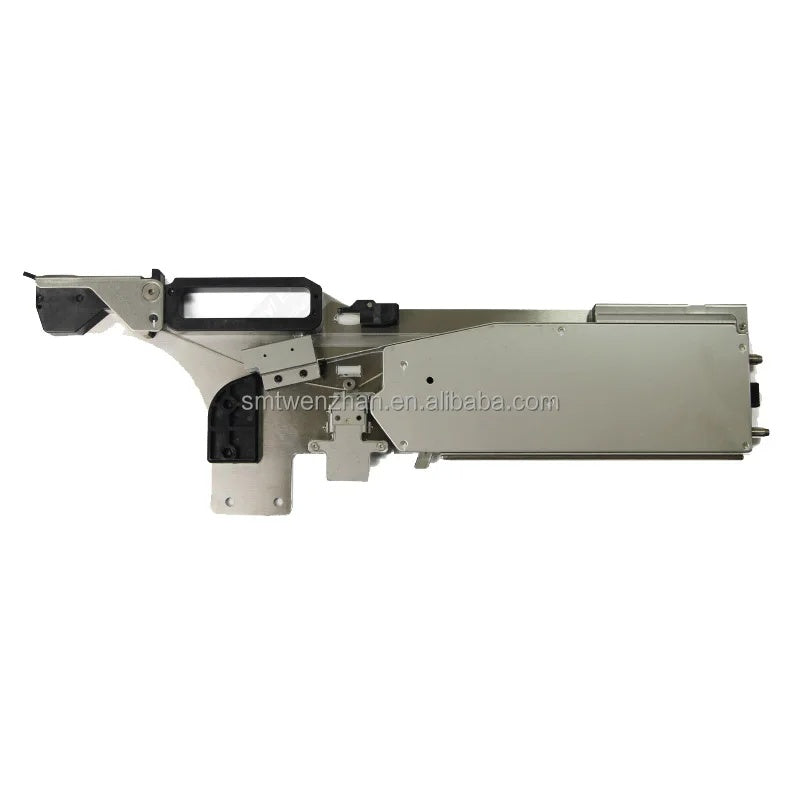

Fuji NXT W16 / W16C / W16F 16mm Electric SMT Feeder

Fuji NXT W16 / W16C / W16F 16mm Electric SMT Feeder Overview

The Fuji NXT W16 / W16C / W16F 16mm Electric Feeder is an intelligent motorized tape cassette feeder engineered for high-accuracy component indexing and reliable pick-and-place performance on Fuji NXT, AIMEX, and XPF placement modules. Designed for 16mm embossed plastic and paper carrier tapes, this electric cassette feeder utilizes closed-loop digital motor drive circuitry and synchronized cover tape peeling to feed ICs, SOIC packages, transformers, connectors, and electrolytic capacitors smoothly with minimal pickup misalignments.

Compatible Equipment

• Fuji NXT Series: NXT I, NXT II, NXT III (M3, M3S, M6, M6S modules)
• Fuji AIMEX Series: AIMEX, AIMEX II, AIMEX IIIC
• Fuji XPF Multi-Function Pick and Place Machines

Technical Specifications Reference

Item	Specification
Brand	Fuji
Series	NXT W Series (Intelligent Cassette Feeder)
Model / Part Numbers	W16 / W16C / W16F
Category	Electric Feeder / Tape Feeder
Applicable Tape Width	16 mm Embossed Plastic and Paper Carrier Tape
Drive Mechanism	Integrated digital electric motor drive with smart serial communication interface
Condition	Condition to be confirmed upon inquiry (Original New / Tested Refurbished)
Quality Testing	100% communication bus check, motor pitch indexing calibration, and peeling tension verification
Minimum Order Quantity	1 Piece

Buyer & Procurement Notice

Listed pricing and inventory status on this catalog page are unverified placeholders. Actual unit cost, shipping arrangements, and lead times are confirmed via formal quotation based on required feeder revision (W16, W16C, or W16F), condition, batch quantity, and destination country.

Procurement & Technical FAQ

Q1: What electronic component packages are compatible with the Fuji 16mm feeder?

A: The 16mm W-series feeder handles medium-to-large surface-mount devices such as SOIC-16/SOIC-20, TSSOP, QFP, large power inductors, tantalum capacitors, and surface-mount transformers supplied in 16mm carrier tape.

Q2: What are the differences between Fuji W16, W16C, and W16F revisions?

A: W16, W16C, and W16F are successive engineering iterations featuring upgraded latch pins, refined tape guiding slots, and enhanced peel-back tension geometry to improve tape release consistency during high-speed production.

Q3: How are refurbished Fuji NXT W16 series feeders tested and certified?

A: All refurbished feeders undergo complete ultrasonic cleaning, structural inspection, electronic bus diagnostic tests, and a 500-cycle advance test on a dedicated Fuji inspection jig.

Q4: How can I request an official quotation?

A: Please send your required model variant (W16, W16C, or W16F), quantity, preferred condition, and delivery destination to vickey@buysmt.com or submit an inquiry through our online Request a Quote form.
