Advanced SMT Placement Tolerance Control Guide: Optimizing First-Pass Yield (FPY) Under IPC-A-610 Standards
Share
1. What Are the SMT Placement Tolerance Limits Under IPC-A-610?
In Surface Mount Technology (SMT) workflows, the SMT placement tolerance standard serves as the critical baseline dictating your production floor's first-pass yield (FPY).
The global Electronics Manufacturing Services (EMS) sector universally references the international IPC-A-610 quality framework (Acceptability of Electronic Assemblies) to govern alignment deviations. These tolerance limits are strictly mapped to the specific component package size and manufacturing application class:
- Standard Passive Components: For standard 0402 (1005 metric) and 0603 packages, typical placement center location tolerance must be maintained within ±0.1mm. Concurrently, the side overhang must never exceed 50% of the component solder terminal width.
- Micro and Fine-Pitch Packages: With the scaling of high-density PCBA designs for automotive and consumer electronics, modern pick-and-place systems running 0201 (0603 metric), 01005 packages, or 0.4mm pitch CSPs/BGAs must compress the acceptable process placement window down to a closed-loop threshold of ±0.03mm to ±0.05mm.
If physical placement offsets exceed these upper and lower specification limits, the unbalanced surface tension of the molten solder paste during the liquidus phase triggers severe manufacturing anomalies, specifically component tombstoning, bridging short-circuits, and latent cold solder joints.
2. Root-Cause Analysis: The 4 Hidden Drivers of SMT Placement Error Stacking
Achieving micron-level alignment requires diagnosing the entire system. Positional drift on an active SMT production line is rarely an isolated error; it is typically an accumulation of error stacking across four primary operational vectors:
A. Equipment Mechanical Wear & Backlash
The positioning capability of a chip mounter depends entirely on its X/Y linear gantries, SMT machine ball screws, and linear guide rails. Under continuous multi-shift operation, these mechanical drive components experience metallic fatigue, introducing a physical backlash gap. Furthermore, if the vertical Z-axis spline runout inside a multi-nozzle placement head exceeds specification, the nozzle experiences radial micro-vibrations during high-speed travel, directly amplifying placement offsets.
B. Solder Paste Rheology & Material Variation
Physical PCB warpage or substrate dimensional shrinkage across multi-layer panelization alters the exact grid mapping of your fiducial marks. Additionally, if batch-to-batch solder paste viscosity and thixotropic properties are poorly managed, the printed deposits will exhibit volume non-uniformity during stencil printing, disrupting component adhesion stability upon touchdown.
C. Feeder Communication & Nozzle Attrition
Whether running an intelligent electric feeder like the Samsung Hanwha SMT Feeder, a Fuji NXT pneumatic feeder, or a Panasonic NPM feeder, the interface pogo pins inside the feeder carriage slots suffer structural wear over time. This wear triggers data jitter and latency, leading to a physical pitch mismatch during tape indexing. Concurrently, if the reflective coating on your SMT nozzles degrades, the vision alignment system's camera matrix records processing artifacts, driving calculation drift.
D. Cleanroom Environmental Conditions
Micro-climatic fluctuations in relative humidity and ambient cleanroom temperature accelerate solder paste flux dry-out and oxidation. Moreover, inadequate electrostatic discharge (ESD) mitigation can cause micro-components to skew via static attraction inside the carrier tape pocket right before the pick-up stroke.
3. Industrial Optimization Strategies: Restoring Machine Cpk for Maximum Yield
To permanently anchor your placement tolerances within IPC standards and maximize your factory's cost efficiency, process engineers must enforce a data-driven optimization protocol:
- Execute Physical Cpk Verification: Stop relying solely on software-level coordinate compensations. Implement a strict preventive maintenance (PM) schedule utilizing specialized feeder calibration jigs to verify gantry sub-systems. Ensure that your placement equipment consistently maintains a Process Capability Index of Cpk ≥ 1.33 (with a target of ≥ 1.67 mandated for automotive and high-reliability aerospace boards).

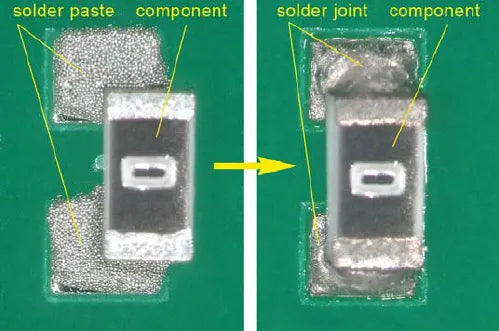

- Implement 3D SPI to AOI Closed-Loop Linkage: Connect your 3D Solder Paste Inspection (SPI) data directly with the pick-and-place front end. If the SPI sensor detects volumetric or height shifts on a pad array, the placement machine software should automatically dynamically adjust its nozzle impact dampening and vacuum purge timing. This allows the component to fully leverage the melted solder's natural surface tension for an optimal self-alignment reflex during reflow profiling.
- Deploy Statistical Process Control (SPC) Dashboards: Transition away from reactive troubleshooting. Integrate real-time SPC charts tracking coordinate variance along the X, Y, and Theta axes. If the data dashboard highlights a mean trend drifting across three consecutive cycles, process engineers can recalibrate gantry offsets proactively before any hard machine error or line stoppage occurs.
