Brand: SAMSUNG

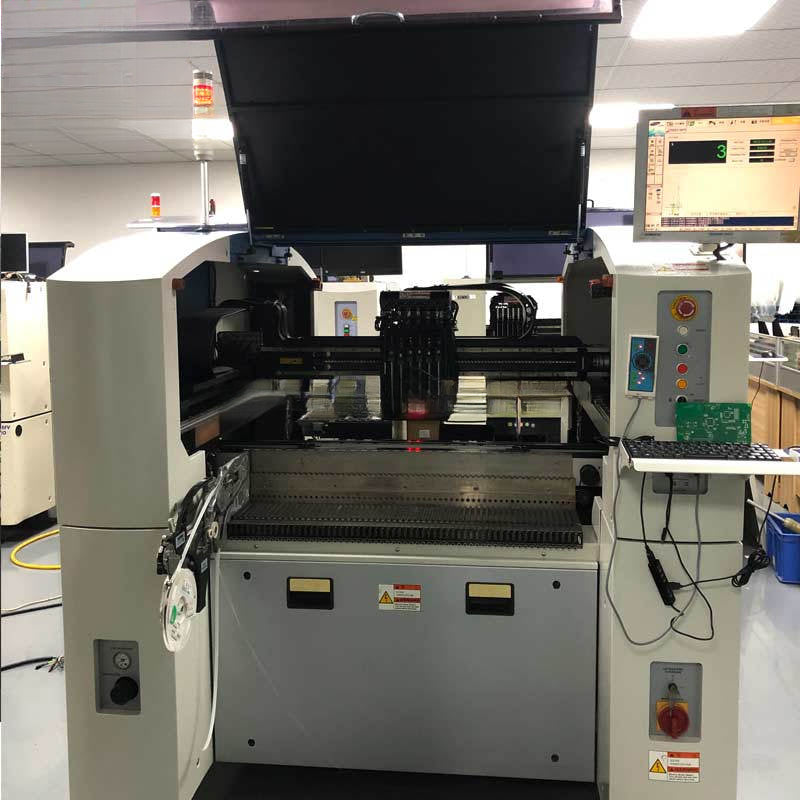

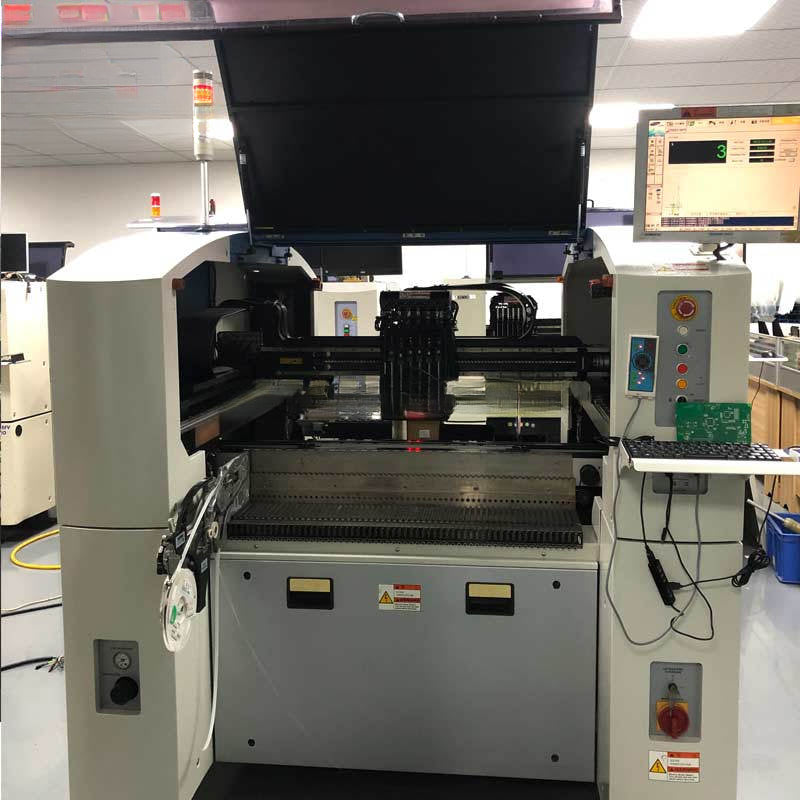

Model:SAMSUNG SM481 Pick And Place Machine
Specification:SAMSUNG SM481 NEO Pick And Place Machine
Condition:original/copy
Quality: top quality
Stock:large
Payment:L/C T/T D/P Western Union Paypal Money Gram And Others
Shipment:In three days
Warranty: 6 month
Delivery:fedex,ups,dhl,as required
Package:carton box with foam protect
1.High-Speed Placement: The SM481 PLUS can place components at a remarkable speed of up to 48,000 components per hour, optimizing production efficiency and throughput.
2.Precise Placement Accuracy: With a placement accuracy of ±0.035 mm, the machine is capable of handling even the smallest and most delicate electronic components, ensuring reliable and consistent assembly.
3.Versatile Feeding System: The machine supports a wide range of component types, including tape, tray, and stick feeders, allowing for flexible and efficient handling of various component packages.
4.Advanced Vision System: The integrated vision system with advanced image processing algorithms ensures accurate component recognition and precise placement, reducing the risk of placement errors.
5.Intelligent Nozzle Management: The machine's intelligent nozzle management system automatically selects the appropriate nozzle for each component, optimizing productivity and minimizing changeover times.
6.Intuitive User Interface: The user-friendly interface and touch-screen display make it easy for operators to set up, monitor, and control the machine, enhancing the overall user experience.
7.Modular Design: The SM481 PLUS is designed with a modular architecture, allowing for easy upgrades and customization to meet the changing needs of the production environment.

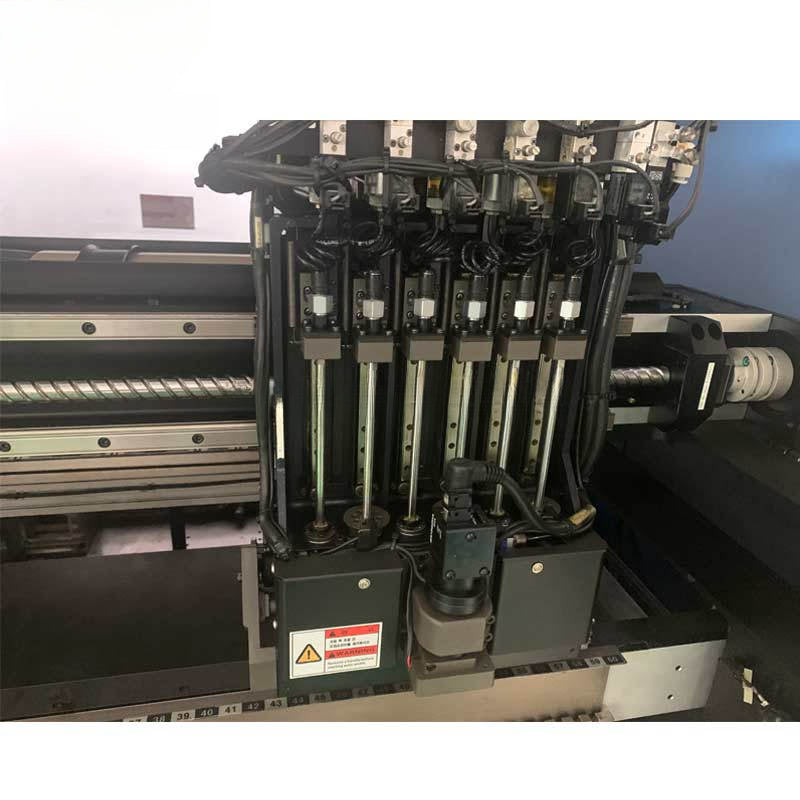

2.1 Gantry x 10 Spindles/Head
3.Applicable part: 0402 ~□42mm(H 15mm)
4.Applicable PCB: 460(L) x 400(W)(Standard)
Max.740(L) x 460(W)(Option)
5.High speed, high precision and electrically driven feeder
– Automatic pick-up position alignment function
– Compatible with SM pneumatic feeders
6.New vacuum system and optimized pickup/placement motion SMART Feeder
– World’s first Auto Splicing and Auto Loading
|
Model
|
SM481
|
|
Alignment
|
Flying Vision + Stage Vision (Option)
|
|
Number of Spindles
|
10 Spindles x 1 Gantry
|
|
Placement Speed
|
38,000 CPH (Optimum)
|
|
Placement Accuracy
|
±50μm@μ+3σ/Chip, ±30μm@μ+3σ/QFP (Based on the standard chips)
|
|
Board Dimension (mm)Maximum
|
460(L) x 400(W) 510(L) x 460(W) (Option) 610(L) x 510(W) (Option) 1,500(L) x 460(W) (Option)
|
|
Board Dimension (mm)Minimum
|
50(L) x 40(W)
|
|
Power
|
AC 200 / 208 / 220 / 240 / 380 / 415 V (50/60Hz, 3Phase) Max. 3.5kVA
|
|
Air Consumption
|
0.5 ~ 0.7MPa (5 ~ 7kgf/cm 2 ) 180Nℓ/min, 50Nℓ/min (Vacuum Pump)
|
|
weight
|
1,655 kg
|
|
External Dimension(mm)
|
1,650(L) x 1,680(D) x 1,530(H)
|
|
Weight (KG)
|
1500
|
|
Showroom Location
|
Egypt, Canada, Turkey
|
|
Video outgoing-inspection
|
Provided
|
|
Machinery Test Report
|
Provided
|
|
Marketing Type
|
New Product 2020
|
|
Warranty of core components
|
6 month
|
|
Core Components
|
PLC
|
|
Place of Origin
|
South Korea
|
|
Brand Name
|
SAMSUNG
|
|
Model Number
|
SMD SAMSUNG sm481 led pick and place machine
|
|
Warranty
|
6 month
|
|
Product name
|
SAMSUNG sm481 pick and place machine
|
|
Model number
|
SM481
|
|
Quality
|
Top
|
|
package
|
wooden case
|
|
Specification
|
SMT PICK AND PLACE MACHINE
|
|
Condition
|
new
|
|
Type
|
SMT machine related products
|
|
Brand
|
samsung
|
|
Delivery
|
ups,dhl,fedex,as your order
|
|
warranty
|
6 month
|
Company Profile: ismtparts (Shenzhen Jiadahua)
Your Leading One-Stop Solutions Partner for the Global SMT Industry
ismtparts (Shenzhen Jiadahua) is a professional, high-tech enterprise dedicated to the sales, maintenance, and technical support of SMT (Surface Mount Technology) equipment and precision components.With a deep-rooted history in the industry, we provide comprehensive, cost-effective production solutions for electronics manufacturers worldwide.
Who We Are
Founded by a team of industry veterans with over 10 years of hands-on expertise, Shenzhen Jiadahua operates under the core philosophy: "Maximizing value for our customers by reducing costs and increasing efficiency." We don't just sell parts; we provide the technical backbone that keeps your SMT production lines running at peak performance.
Our Comprehensive Offerings
We specialize in a wide array of world-leading SMT brands, including SAMSUNG, YAMAHA, FUJI, PANASONIC, JUKI, SONY, SIEMENS, UNIVERSAL, and more.
-
SMT Spare Parts: A vast inventory of Original (New/Used) and high-quality compatible parts (Nozzles, Feeders, Filters, Belts, Sensors, etc.).
-
Equipment Solutions: Buying and selling of high-quality second-hand SMT machines, including installation, commissioning, and professional training.
-
Expert Repair Services: Specialized maintenance for high-value components such as Servo Motors, Control Boards (PCBs), Drivers, Amplifiers, and Power Boxes.
-
Auxiliary Equipment & Tools: From Feeder Calibration Fixtures and Solder Paste Mixers to Reflow Ovens, Stencils, and AOI systems.
-
Consumables & Materials: Premium SMT materials including Solder Paste, Red Glue, High-Temperature Lubricants, Stencil Wiping Paper, and SMT Tape.
-
Custom Engineering: Precision manufacturing of SMT special parts, tooling, and fixtures tailored to your specific production needs.
Why Partner with ismtparts?
-
Professional Expertise: Our technical team provides expert consulting to help you optimize line selection and reduce production loss.
-
Quality Guarantee: We adhere to a "Quality First" policy.Every part and machine undergoes rigorous inspection and testing before shipment.
-
Economic Efficiency: Our "Save Money, Make Money" philosophy ensures you get the most durable parts at the most competitive market prices.
-
Reliable Partnership: We aim to be more than a supplier; we are your long-term technical partner in the fierce electronics manufacturing market.
FAQ (Frequently Asked Questions)
1. Who is ismtparts / Shenzhen Jiadahua?
We are a specialized SMT service provider based in Guangdong, China (established in 2009).Our team of 11-50 experts serves a global clientele, with major markets in North America (25%), Europe (18%), and Asia (12%).
2.How do you ensure product quality?
Quality is our priority.We follow a strict quality control process, including pre-production sample validation and a 100% final inspection before any shipment leaves our facility.
3.What can I purchase from you?
We are your one-stop shop for:
-
SMT Pick & Place Machines
-
Original & Compatible Spare Parts (Nozzles, Feeders, etc.)
-

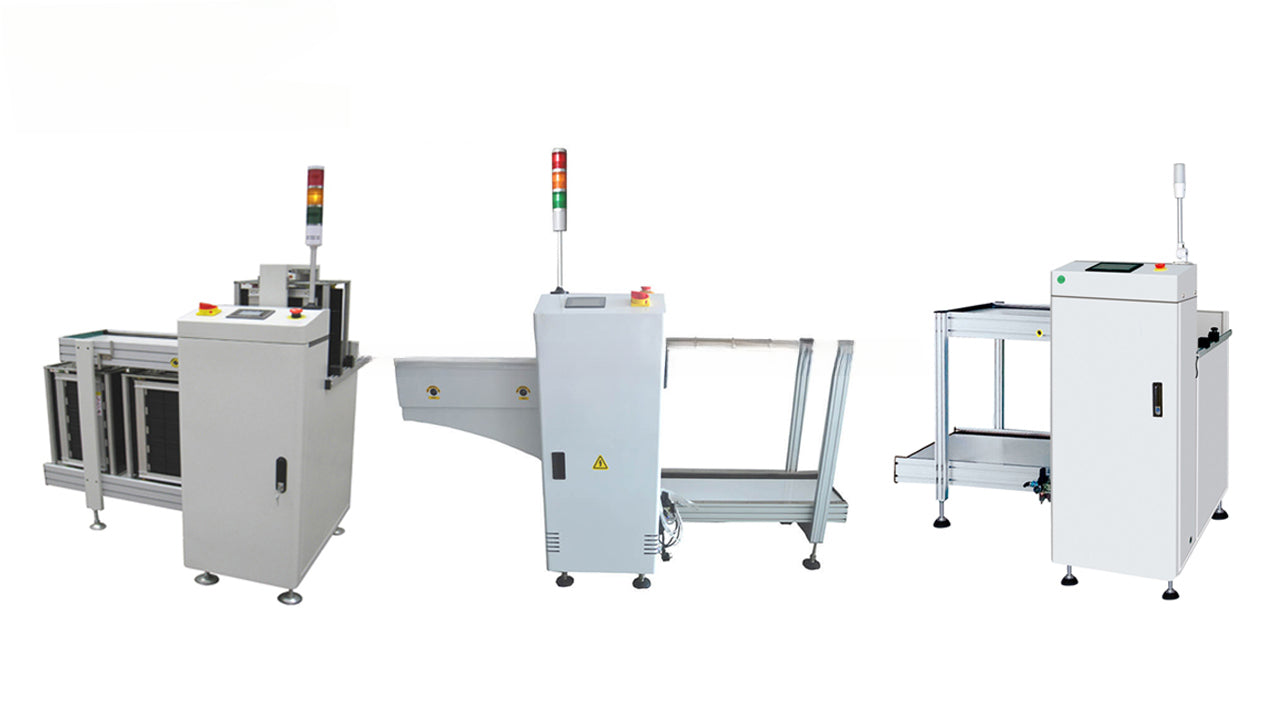

PCB Handling Equipment (Loaders, Conveyors)
-

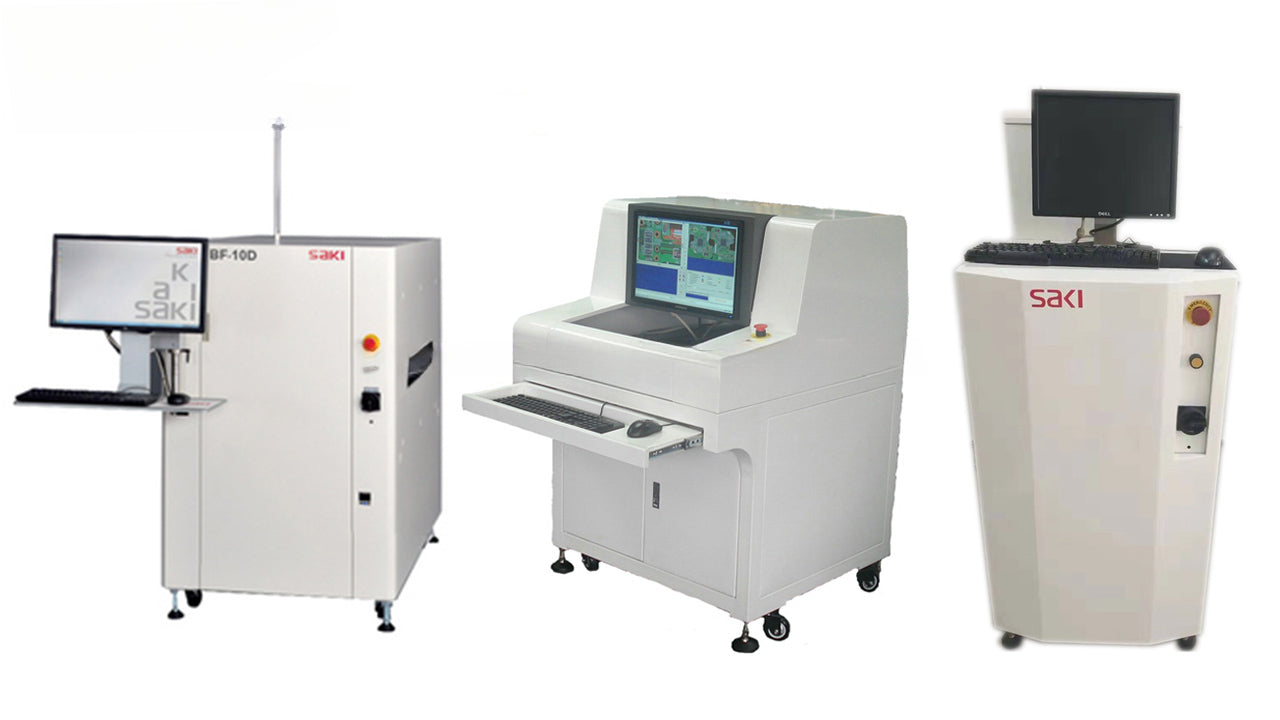

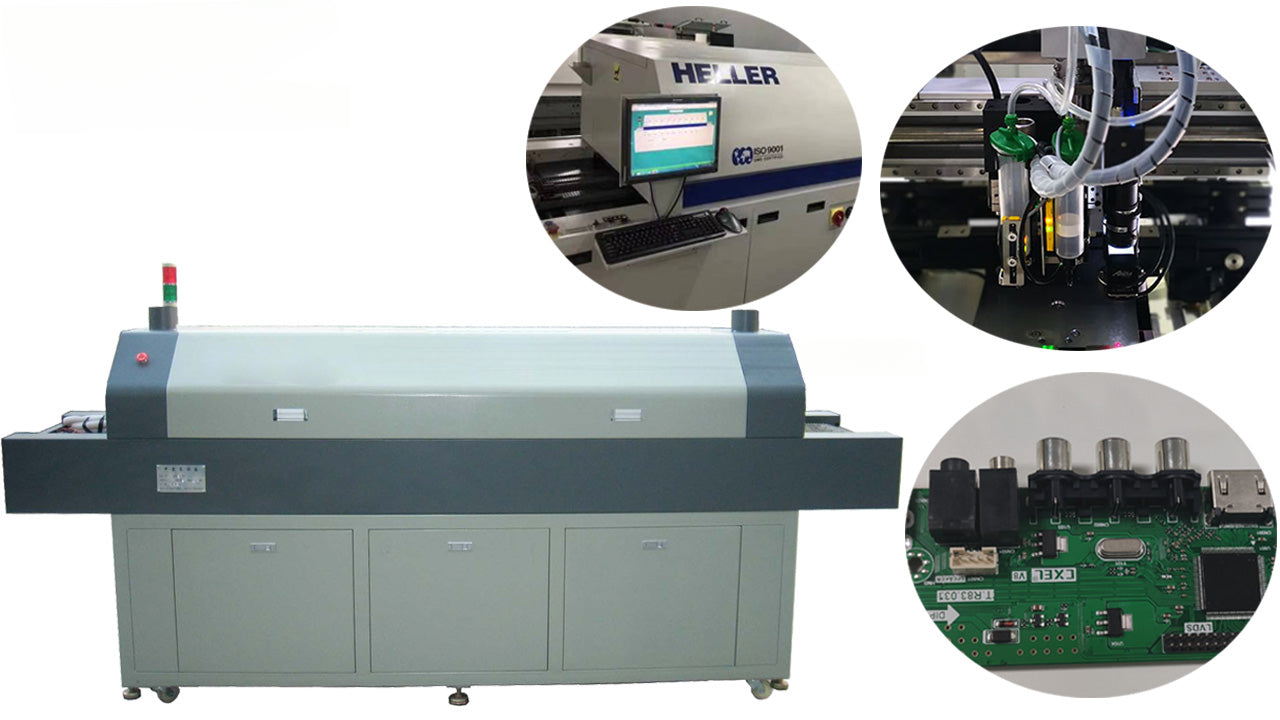

Reflow Ovens & AOI Systems
-
